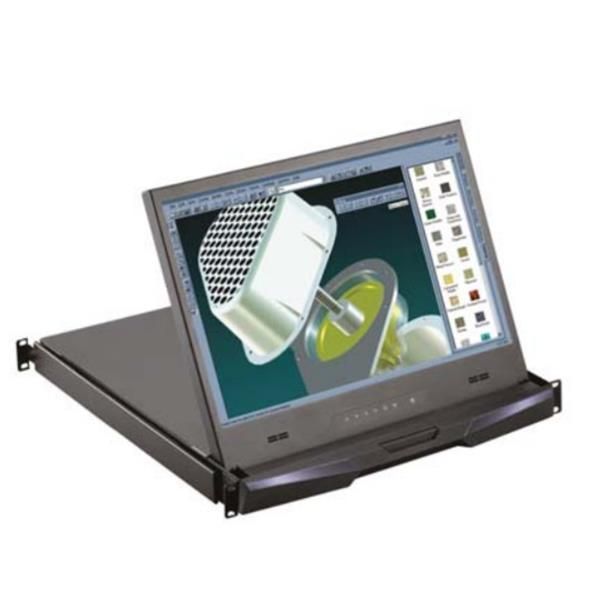

SL-RMPD-RP-W119

1U Rackmount 19" LCD Drawer, 1440 X 900 Resolution, with VGA and DVI-D inputs, Short Depth of 18.1" (460mm); Power: Auto-sensing 100 to 240VAC, 50 / 60Hz

1U LCD Drawer

  • 1U Rackmount 19" Widescreen LCD Drawer
  • 1440 X 900 Resolution
  • VGA and DVI-D inputs
  • Power: Auto-sensing 100 to 240VAC, 50 / 60Hz

LCD Panel

  • Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD
  • Display pixel ( dots x lines ) 1440 x 900
  • Brightness ( typ. ) 250
  • Contrast Ratio ( typ. ) 1000:1
  • Color 16.7 M
  • Viewing Angle ( L/R/U/D ) 85/85/80/80
  • Response Time ( ms ) 5
  • Dot pitch ( mm ) 0.2835
  • Display Area ( mm ) 408.24H x 255.15V
  • Surface treatment Anti-glare
  • Surface hardness 3H
  • Backlight Type LED
  • MTBF ( hrs ) 30,000

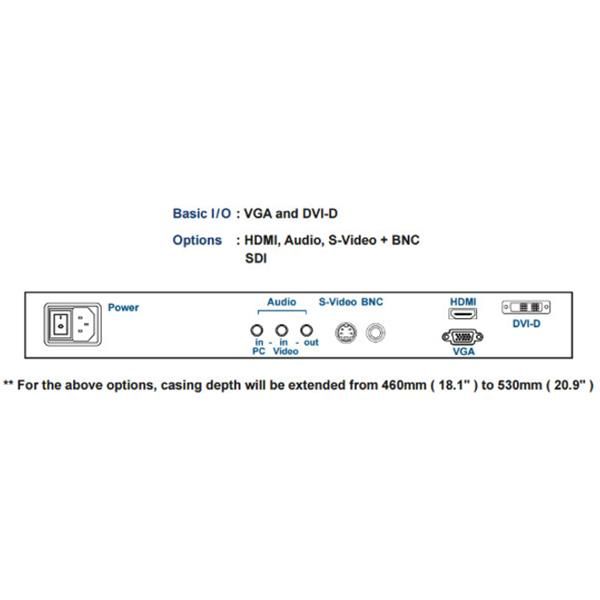

Video Connectivity

  • Digital: DVI-D, TMDS single link
  • Analog: VGA Analog 0.7Vp-p
  • Plug & Play DVI / VGA VESA EDID structure 1.3

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

  • Screen ON Max. 25W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Compliance

  • EMC FCC & CE certified
  • Safety CE / LVD certifi ed
  • Environment RoHS2 & REACH compliant

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

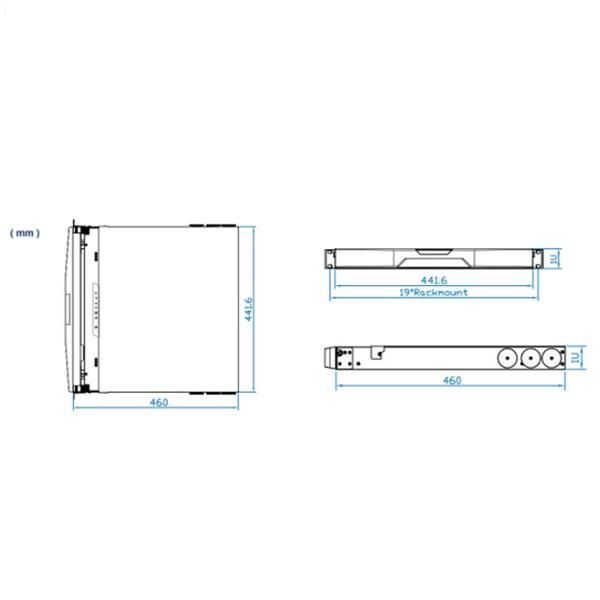

Physical Specification

  • Product ( W x D x H ) 441.6 x 460 x 44 mm, 17.4 x 18.1 x 1.73 inch
  • Packing ( W x D x H ) 588 x 758 x 120 mm, 23.1 x 29.8 x 4.7 inch
  • Net Weight 13 kgs / 28.5 lbs
  • Gross Weight 17 kgs / 37.4 lbs
