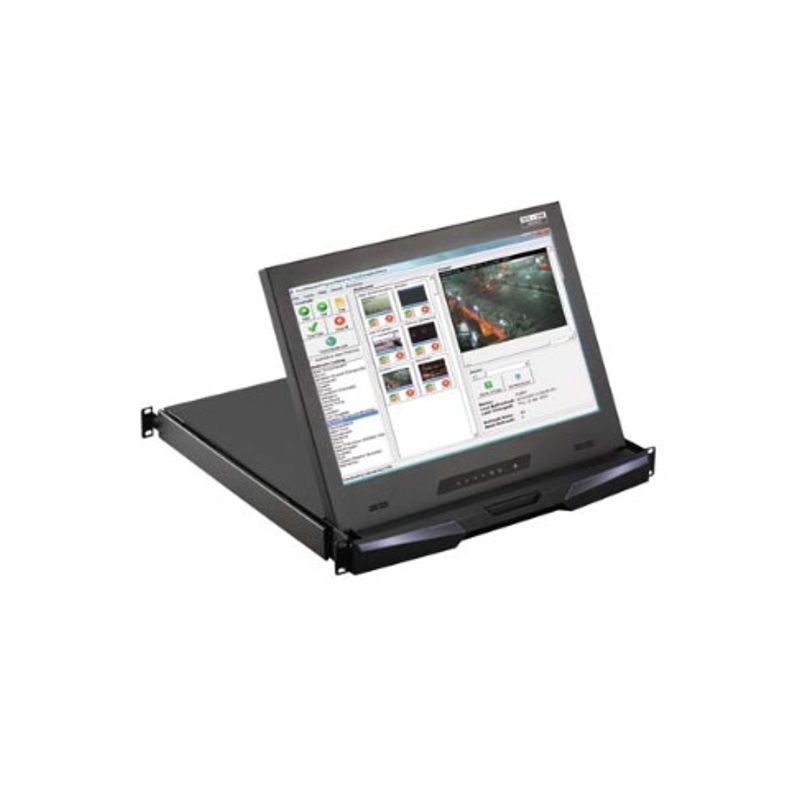

SL-RMPD-RP-X117-HDMI

1U 17.1" 1920 x 1200 Widescreen LCD Drawer with VGA + HDMI (no speaker),

  • 1U 17" widescreen LCD drawer with VGA + HDMI (no speaker),
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Enhanced aesthetics with molded front panel and two point lock
  • Short depth design of 480mm ( 18.9" ) only

LCD Panel

  • Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD
  • Display pixel ( dots x lines ) 1920 x 1200
  • Brightness ( typ. ) 210
  • Contrast Ratio ( typ. ) 600:1
  • Color 16.7 M, 8-bit
  • Viewing Angle ( L/R/U/D ) 65/65/55/55
  • Response Time ( ms ) 30
  • Dot pitch ( mm ) 0.191
  • Display Area ( mm ) 367.20H x 229.50V
  • Surface treatment Anti-glare, Hard-coating
  • Surface hardness 3H
  • Backlight Type LED
  • MTBF ( hrs ) 20,000

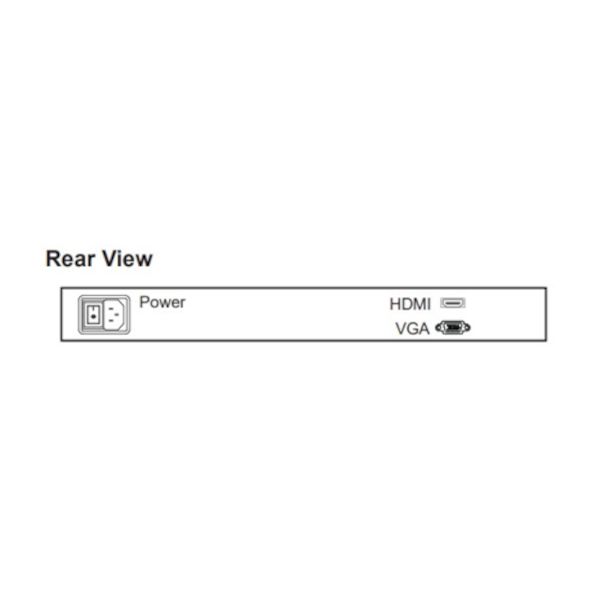

Video Connectivity

  • VGA Analog 0.7Vp-p
  • HDMI
  • Plug & Play VGA VESA EDID structure 1.3

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

  • Screen ON Max. 34W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Regulatory

  • Safety FCC & CE certified
  • Environmental RoHS2 & REACH compliant

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft
  • Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

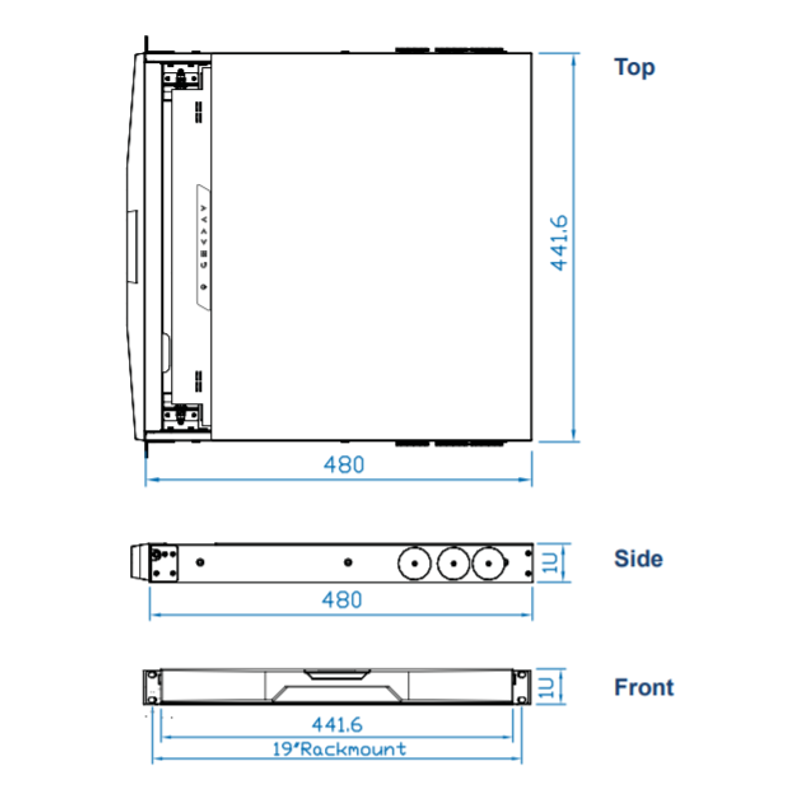

Physical Specifi cation

  • Product ( W x D x H ) 441.6 x 480 x 44 mm 17.4 x 18.9 x 1.73 inch
  • Packing ( W x D x H ) 588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch
  • Net Weight 11 kgs / 24.2 lbs
  • Gross Weight 15 kgs / 33 lbs
