SL-RMKB-17-DK117e-KVM

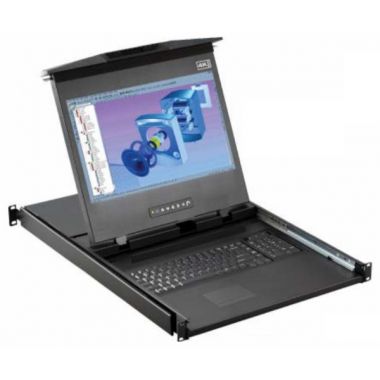

1U dual slide 17" widescreen LCD console drawer with 8 Ports 4K KVM. 4K/UHD. Displayport. 104-key keyboard with touchpad. Depth 25.6".
Features
- 17.3" 4K/UHD LCD 1U Dual Slide Console Drawer
- HDMI 2.0 + USB-B
- 8 Ports 4K 60hz HDMI + USB KVM
- 3840 X 2160 Resolution
- 104-key Keyboard with Touchpad
- Depth 650mm (25.6")
- No Cable Included. Please see Related Products for the cables.
LCD Panel
Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 3840 x 2160
Brightness ( typ. ) 300
Contrast Ratio ( typ. ) 1000:1
Color 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 89/89/89/89
Response Time ( ms ) 16 Dot pitch ( mm ) 0.0995
Display Area ( mm ) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 20,000
Video
KVM HDMI 2.0
Power
Power Supply
Range Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption for Single Console Screen ON Max. 29W
Power saving mode Max. 9W
Power button OFF Max. 2W
Regulatory
Safety FCC & CE certified
Environmental RoHS2 & REACH compliant
Environmental Conditions
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical Specification
Product ( W x D x H ) 441.6 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch
Packing ( W x D x H ) 595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch
Net Weight 13 kg 28.6 lb
Gross Weight 19 kg 41.8 lb
Applicable Format
Display Port Input
PC Signal
3840 x 2160 x 60Hz
1920 x 1080 x 60Hz
1600 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 768 x 60Hz
1024 x 768 x 60 / 70 / 75Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
Audio Signal 2ch Linear PCM
