SL-RMKB-17-RKP2417F-U801e

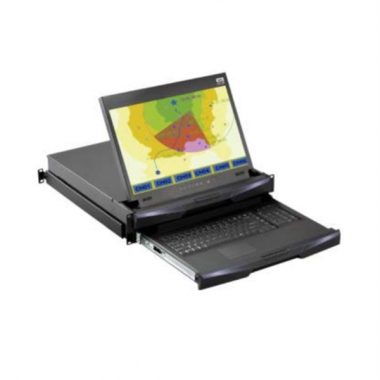

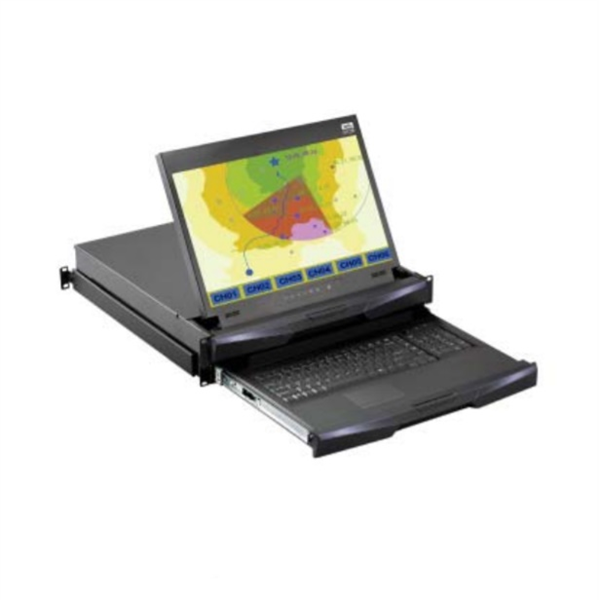

2U dual slide 17" widescreen LCD console drawer. Support Full HD with 1080p resolution. Green LED-backlit panel technology. 104-key keyboard with touch pad. 1 Local User with 8 Ports KVM. Short depth design of 580mm ( 22.8" )

Keyboard with Touchpad

  • 2U 17" LCD console drawer
  • Dual slide - LCD and keyboard slide independently
  • 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
  • DVI-D + VGA video input / USB KB / MS
  • 104-key keyboard with touchpad
  • Short depth design of 580mm
  • One Man installation design
  • Enhanced aesthetics with molded front handle and two point lock
  • Console Type Combo Cat6
  • 1 Local User 8 Ports

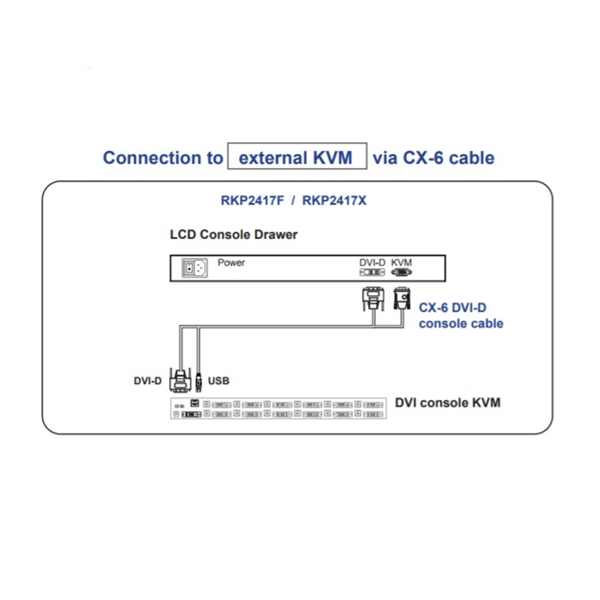

Console Port

  • Video input VGA + DVI-D single link
  • KB / MS Combo ( USB or PS2 )
  • DVI-D console 6ft cable : CX-6
  • Drawer end : DVI-D + DB-15 ( USB KB / MS )
  • Server end : DVI-D + USB type A

LCD Panel

  • Panel size ( diagonal ) 17.3"
  • Native resolution 1920 x 1080
  • Brightness ( cd/m² ) 400
  • Contrast ratio ( typ. ) 600 : 1
  • Colors 16.7 M, 8-bit
  • Viewing angle ( L/R/U/D ) 80/80/60/80
  • Response time ( ms ) 40
  • Dot pitch ( mm ) 0.1989
  • Display area ( mm ) 381.888H x 214.812V
  • Surface treatment Anti-glare, Hard-coating
  • Surface hardness 3H
  • Backlight type LED
  • MTBF (hrs) 50,000

Power

  • Input Auto-sensing 100 to 240VAC, 50 / 60Hz
  • Consumption
  • Screen on Max. 55W
  • Power saving mode Max. 34W
  • Power button on Max. 1W

Environment

  • Operating temp. 0 to 55°C degree
  • Storage temp -20 to 60°C degree
  • Operating humidity 20~90%, non-condensing
  • Storage humidity 5 ~90%, non-condensing
  • Operating altitude 16,000 ft
  • Non-operating altitude 40,000 ft
  • Shock 10G acceleration ( 11ms duration )
  • Vibration 10~300Hz 0.5G RMS random vibration

Compliance

  • EMC FCC & CE certified
  • Safety CE / LVD certified
  • Environment RoHS2 & REACH compliant

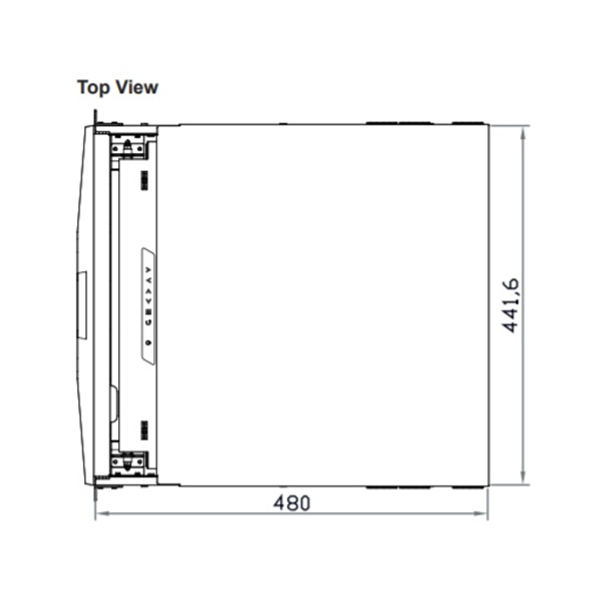

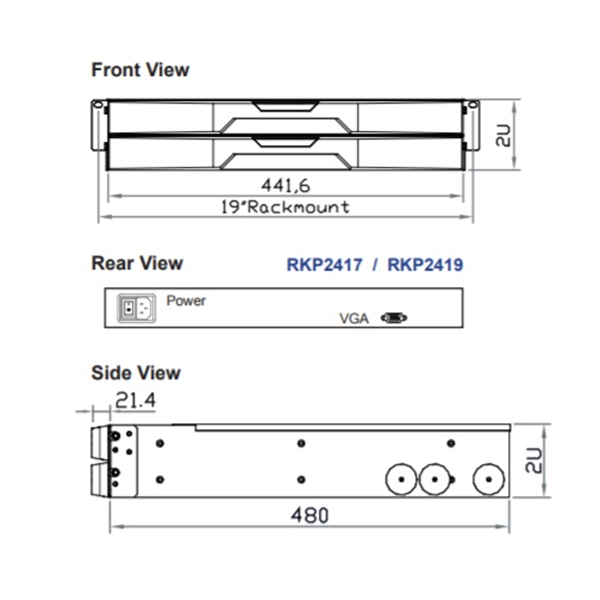

Physical

  • Product ( W x D x H ) 442 x 580 x 44 mm
  • Packing ( W x D x H ) 590 x 808 x 140 mm
  • Net weight 21.1 kg / 46.4 lb
  • Gross weight 27 kg / 59.4 lb

Mounting Distance

  • Console w/ KVM drawer 490 ~ 700 mm
