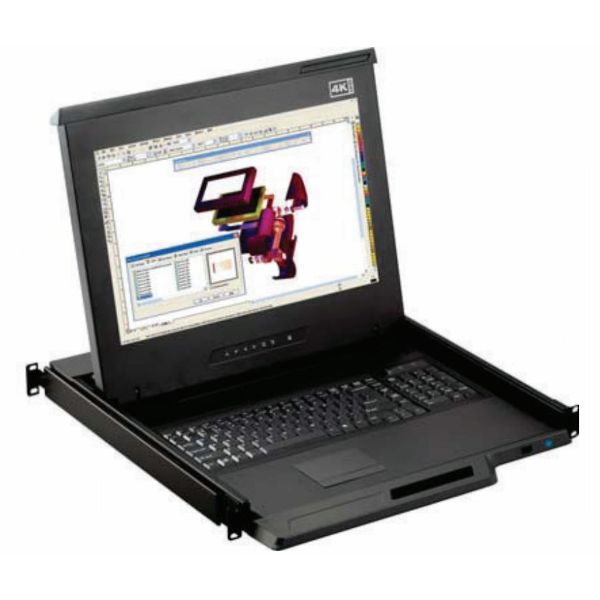

SL-RMKB-K117e-KVM

17.3" 4K LCD Drawer with 8 Port 4K HDMI KVM. Support 4K/UHD with 3840 X 2160 resolution; LED-backlit panel technology with 300 NITS Brightness, 104-key keyboard with touchpad; Short depth design of 580mm (22.8")

Features

  • 17.3" 4K/UHD LCD Drawer
  • 3840 X 2160 Resolution
  • HDMI + USB-B
  • 8 Ports 4K 60Hz HDMI + USB KVM
  • 104-key Keyboard with Touchpad
  • Depth of 580mm (22.8")
  • Cable Not Included. Please see related products for cables.



LCD Panel

Native Resolution                             3840 x 2160

Panel Size ( diagonal )                     17.3-inch TFT color LCD

Brightness ( cd/m² )                         300

Contrast Ratio ( typ. )                     1000:1

Colors                                                   16.7 M, 8-bit

Viewing Angle ( L/R/U/D )             89/89/89/89

Response Time ( ms )                      16

Dot pitch ( mm )                               0.0995

Display Area ( mm )                         382.12H x 214.94V

Surface treatment                           Anti-glare

Surface hardness                              3H

Backlight Type                                   LED

MTBF ( hrs )                                        20,000



Video

KVM                                                       8x HDMI 2.0



KVM Port

Number of ports :                            8

Connector :                                         HDMI 2.0 + USB-B ( Video + KB / MS )

Resolution :

16 : 9 - max. 3840 x 2160@60Hz

16 : 10 - max. 1920 x 1200@60Hz

4 : 3 - max. 1600 x 1200@60Hz



Power

Power Supply

Range                                                    Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption for

Single Console Screen                    ON Max. 29W Power saving mode Max. 9W Power button OFF Max. 2W



Compliance

EMC                                                       FCC & CE certified

Safety                                                   CE / LVD certified

Environment                                      RoHS2 & REACH compliant



Environmental Conditions

Operating

Temperature                                     0 to 55°C degree

Humidity                                              20~90%, non-condensing

Altitude                                                16,000 ft

Storage / Non-operating

Temperature                                     -20 to 60°C degree

Humidity                                              5~90%, non-condensing

Altitude                                                40,000 ft

Shock                                                    10G acceleration (11ms duration)

Vibration                                             5~500Hz 1G RMS random



Physical Specification

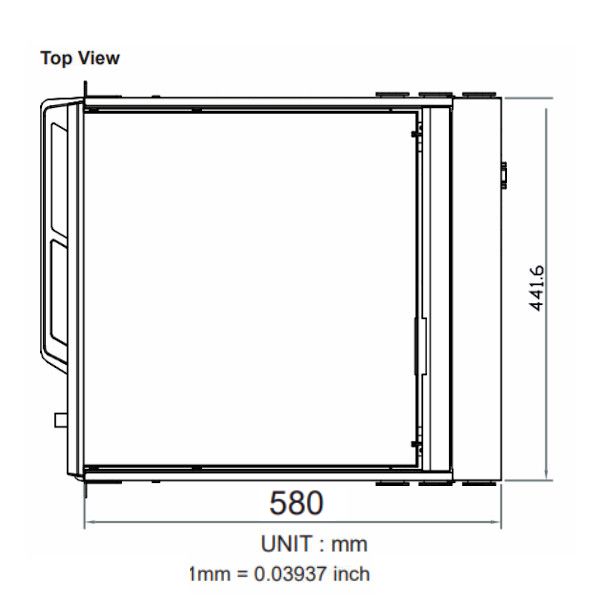

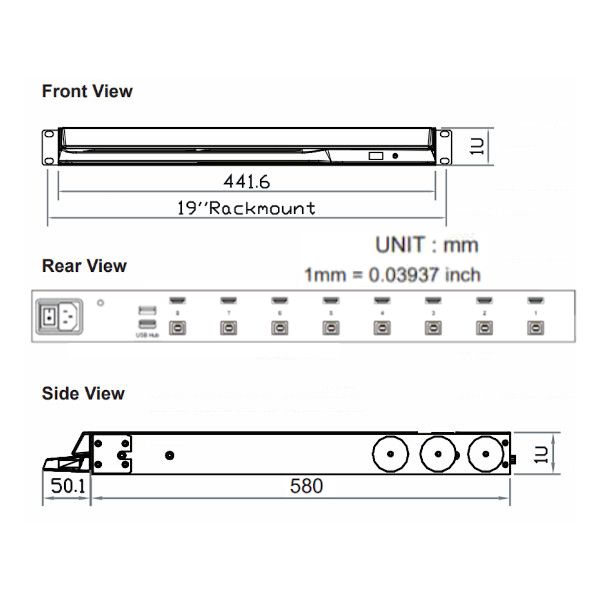

Product ( W x D x H )                       441.6 x 580 x 44 mm 17.4 x 22.8 x 1.73 inch

Packing ( W x D x H )                       590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch

Net Weight                                         12.1 kg 26.6 lb

Gross Weight                                     18.1 kg 39.8 lb



Applicable Format

Display Port Input

PC Signal

3840 x 2160 x 60Hz

1920 x 1080 x 60Hz

1600 x 1200 x 60Hz

1360 x 768 x 60Hz

1280 x 1024 x 60 / 75Hz

1280 x 768 x 60Hz

1024 x 768 x 60 / 70 / 75Hz

800 x 600 x 60 / 72 / 75Hz

720 x 400 x 70Hz

640 x 480 x 60 / 72 / 75Hz

Audio Signal        2ch Linear PCM
