SL-RMKB-RKP119-S801e

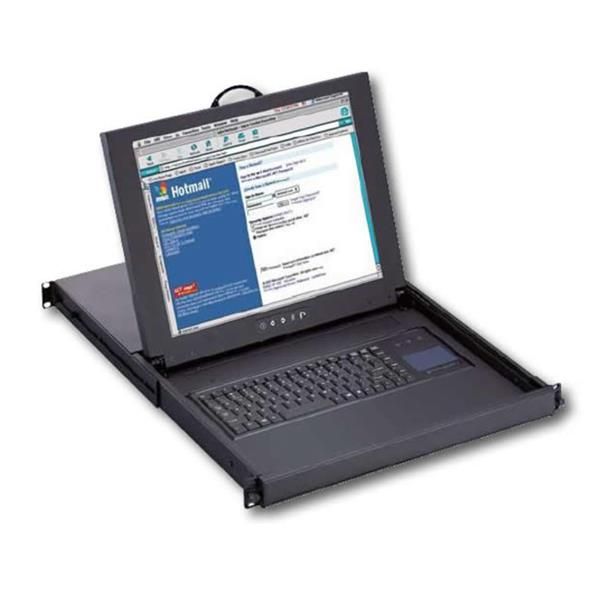

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep Racks

1U Rackmount 19
  • Front Angle

8 port USB/PS2 KVM



  • Unique mechanical design to maximize rack mountable space.
  • Adjustable mounting brackets from 390mm to 740mm. (front to rear 19” mounts)
  • Black anodized aluminium front panel
  • Lightweight aluminum construction – with a black anodize finish
  • 19” LCD Panel
  • Built-in on screen display controlled by integral membrane switches
  • Standard D-sub 15-pin VGA input connector
  • Lock out rails to prevent movement of the keyboard
  • Front- access lock for security
  • Supplied with 12V 5A remote power adapter (single power source)
  • Rear rackmount bracket included.
  • Cascade for use up to 128 servers.
  • Name servers up to 16 characters long.
  • Scan mode – Monitor servers at intervals 5 to 99 seconds.
  • High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
  • Built-in microprocessor emulation for each port boots up process.
  • Support eight characters password protection and search PC server name.
  • VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
  • Multi-platform – mix PCs, SUN Microsystems, IBM compatibles, HPs, Compaq and Dell.
  • Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.
  • Fits 25.6" - 33" Deep Racks
Related Products
Technical Specifications
  • Panel: 19" LCD Panel
  • Display type: TFT/ LCD active matrix color
  • Resolution: 1280 x 1024
  • Response time: Tr=15ms/ Tf=10ms
  • Contrast ratio: 700 : 1 typical
  • Brightness: 250 cd/ m 2 typical
  • Pixel pitch: 0.242mm (H) x 0.242mm (W)
  • Panel color: 16.7 million display colors
  • Viewing angel: 170° (Horiz.)/ 170° (Vert.)
  • Storage temp.: -25°C to 60°C
  • Operating temp.: 0°C to 50°C
  • MTBF: 20,000 hours
  • Power supply: 12V 5A DC adapter
  • Dimension: 17.4" W x 25.6" D x 1.73" H
  • Weight (lbs): 49.00
