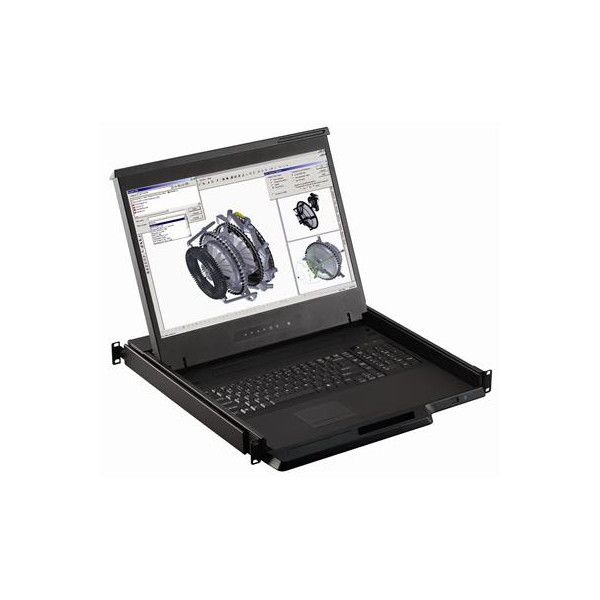

SL-RMKB-W119-S801e

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)

Keyboard with Touchpad

  • 1U Rackmount Drawer with 19" Widescreen LCD Monitor and 8 Port USB KVM Switch
  • Cost efficient Combo KVM integration
  • 19" Widescreen LCD with high resolution 1440x900
  • Mix PS/2,USB & SUN with Multi-Platform Switch capability
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Multiple keyboard language selections with either touchpad or trackball
  • Enhanced aesthetics with new molded front panel and two point lock
  • Cable Not Included. Please use CBL-RMKB-DB15-VUH-6 or CBL-RMKB-DB15-VUP-6

LCD Panel

  • Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD
  • Display pixel ( dots x lines ) 1440 x 900
  • Brightness ( typ. ) 300
  • Contrast Ratio ( typ. ) 1000:1
  • Color 16.7 M
  • Viewing Angle ( L/R/U/D ) 80/80/80/80
  • Response Time ( ms ) 5
  • Dot pitch ( mm ) 0.2835
  • Display Area ( mm ) 408.24H x 255.15V
  • Surface treatment Haze 25%, Hard-coating
  • Surface hardness 3H
  • Backlight Type CCFL
  • MTBF ( hrs ) 50,000

Video Connectivity

  • VGA Analog 0.7Vp-p

Plug & Play VGA VESA EDID structure 1.3

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption for Single Console

  • Screen ON Max. 55W
  • Power saving mode Max. 34W
  • Power button OFF Max. 1W

Regulatory

  • Safety cUL, FCC & CE certified
  • Environmental RoHS2 & REACH compliant

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft
  • Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

Physical Specification



  • Product ( W x D x H ) 441.6 x 460 x 44 mm 17.4 x 22.8 x 1.73 inch
  • Packing ( W x D x H ) 590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch
  • Net Weight 11.5 kgs / 25.3 lbs
  • Gross Weight 16 kgs / 35.2 lbs
