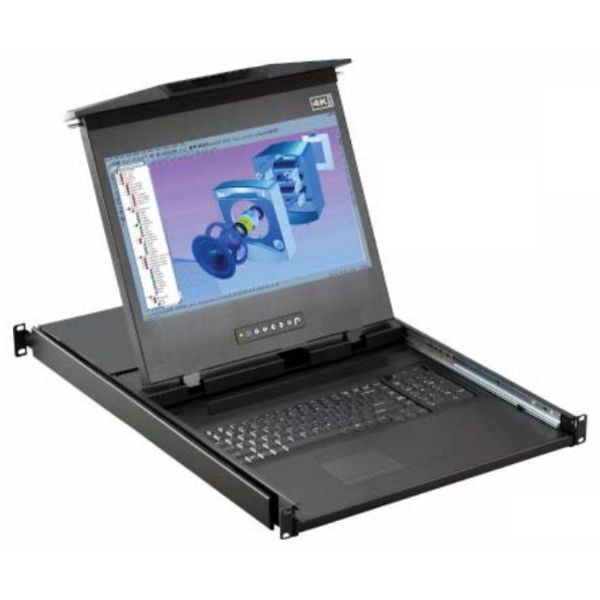

SL-RMKB-17-DK117e-HDMI

LCD Panel

Panel Size ( diagonal )                                     17.3-inch Widescreen TFT color LCD

Display pixel ( dots x lines )                           3840 x 2160

Brightness ( typ. )                                             300

Contrast Ratio ( typ. )                                     1000:1

Color                                                                     16.7 M, 8-bit

Viewing Angle ( L/R/U/D )                             89/89/89/89

Response Time ( ms )                                      16 Dot pitch ( mm ) 0.0995

Display Area ( mm )                                         382.12H x 214.94V

Surface treatment                                           Anti-glare

Surface hardness                                              3H

Backlight Type                                                   LED

MTBF ( hrs )                                                        20,000

Video

Package                                                                DP 1.2 / HDCP 1.3 and HDMI 2.0 / HDCP 2.2

Power

Power Supply

Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption for Single Console  Screen ON Max. 29W

Power saving mode Max. 9W

Power button OFF Max. 2W

Regulatory

Safety                                                                   FCC & CE certified

Environmental                                                   RoHS2 & REACH compliant

Environmental Conditions

Operating                                                            Temperature 0 to 55°C degree

Humidity                                                         20~90%, non-condensing

Altitude                                                          16,000 ft

Storage / Non-operating                               Temperature -20 to 60°C degree

Humidity                                                       5~90%, non-condensing

Altitude                                                         40,000 ft

Shock                                                          10G acceleration (11ms duration)

Vibration                                                      5~500Hz 1G RMS random

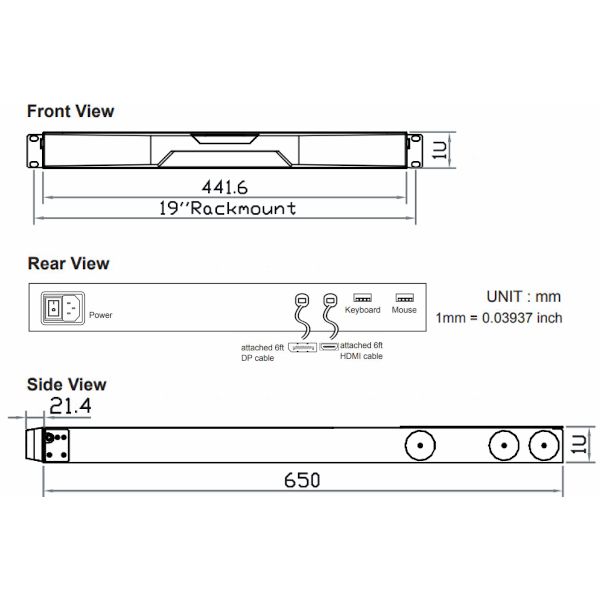

Physical Specification

Product ( W x D x H )                                       441.6 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch

Packing ( W x D x H )                                       595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch

Net Weight                                                         12 kg / 26.4 lb

Gross Weight                                                     18 kg / 39.6 lb

Applicable Format

Display Port Input

PC Signal

3840 x 2160 x 60Hz

1920 x 1080 x 60Hz

1600 x 1200 x 60Hz

1360 x 768 x 60Hz

1280 x 1024 x 60 / 75Hz

1280 x 768 x 60Hz

1024 x 768 x 60 / 70 / 75Hz

800 x 600 x 60 / 72 / 75Hz

720 x 400 x 70Hz

640 x 480 x 60 / 72 / 75Hz

Audio Signal                                                       2ch Linear PCM

HDMI Input

HDMI                                                                 2.0 3840 x 2160 x 60Hz

HDMI 2.0 / 1.4                                                  3840 x 2160 x 30Hz

                                                                         1920 x 1080 x 50 / 60Hz ( 1080p )

                                                                         1920 x 1080 x 25 / 30Hz ( 1080i )

                                                                         1280 x 720 x 50 / 60Hz ( 720p )

                                                                         720 x 480 x 50 / 60Hz ( 576p / 480p )

Audio Signal                                                     2ch Linear PCM
