SL-RMKB-17-H117b

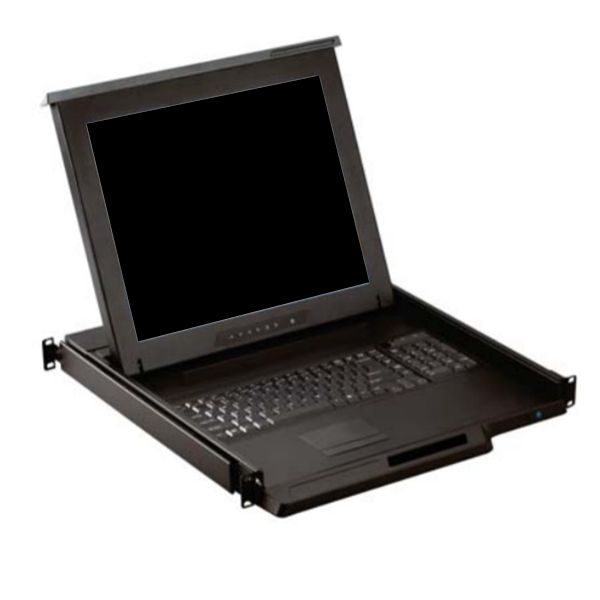

1U 17" High Brightness 1280 x 1024 LCD drawer with keyboard and trackball (Short Depth: 18.9"). VGA input, 6' VGA w/USB console cable

17" High Brightness LCD drawer with keyboard and trackball

  • 1U 17" LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors / 1000 cd/m² brightness
  • 104-key keyboard with trackball
  • Short depth design of 480mm (18.9")
  • One Man installation design
  • New enhanced aesthetics with molded front handle

Console Port

  • Video input VGA
  • KB / MS Combo ( USB or PS2 )
  • console 6ft cable : CB-6
  • Drawer end : DB-15 ( VGA + USB KB / MS )
  • Server end : VGA + USB type A



LCD Panel

  • Panel size ( diagonal ) 17"
  • Native resolution 1280 x 1024
  • Brightness ( cd/m² ) 1000
  • Contrast ratio ( typ. ) 1000 : 1
  • Colors 16.7 M
  • Viewing angle ( L/R/U/D ) 85/85/80/80
  • Response time ( ms ) 5
  • Dot pitch ( mm ) 0.264
  • Display area ( mm ) 337.92H x 270.33V
  • MTBF (hrs) 50,000
  • Surface treatment Anti-glare
  • Surface hardness 3H
  • Backlight type LED

Power

  • Input Auto-sensing 100 to 240VAC, 50 / 60Hz
  • Consumption Screen on Max. 35W
  • Power saving mode Max. 4W
  • Power button on Max. 1W

Environment

  • Operating temp. 0 to 55°C degree
  • Storage temp. -20 to 60°C degree
  • Operating humidity 20~90%, non-condensing
  • Storage humidity 5 ~90%, non-condensing
  • Operating altitude 16,000 ft
  • Non-operating altitude 40,000 ft
  • Shock 10G acceleration ( 11ms duration )
  • Vibration 10~300Hz 0.5G RMS random vibration

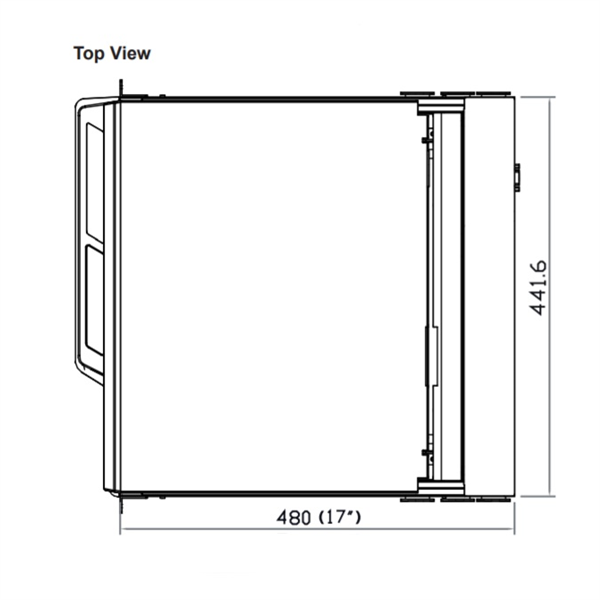

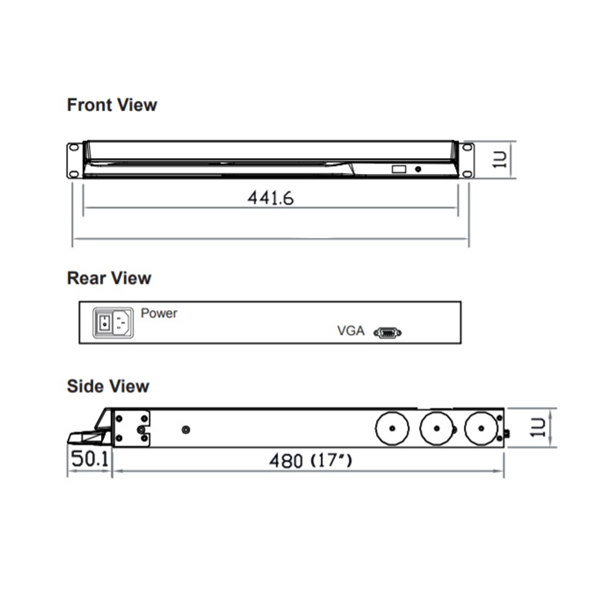

Physical

  • Product ( W x D x H ) 442 x 480 x 44 mm
  • Packing ( W x D x H )  590 x 808 x 140 mm
  • Net weight  12.5 kg / 27.5 lb
  • Gross weight 17.5 kg / 38.5 lb

Mounting Distance

  • Single console drawer  490 ~ 720 mm

Compliance

  • EMC Safety FCC & CE certified
  • Safety CE / LVD certified
  • Environment RoHS2 & REACH compliant
