SL-RMKB-17-HF117e-HDMI

LCD Panel

Panel Size ( diagonal )                                     17.3-inch Widescreen TFT color

LCD Display pixel ( dots x lines )                  1920 x 1080

Brightness ( typ. )                                             1000

Contrast Ratio ( typ. )                                     600:1

Color                                                                     16.7 M

Viewing Angle ( L/R/U/D )                             80/80/60/80

Response Time ( ms )                                      5.5 Dot pitch ( mm ) 0.1989

Display Area ( mm )                                         381.888H x 214.812V

Surface treatment                                           Anti-glare, Hard-coating

Surface hardness                                              3H

Backlight Type                                                   LED

MTBF ( hrs )                                                        50,000

Video Connectivity

Digital                                                                   HDMI HDMI 1.4, CEA-861-E.DVI-D, TMDS single link

Analog                                                                  VGA Analog 0.7Vp-p

Plug & Play                                                         HDMI / DVI / VGA VESA EDID structure 1.3

Synchronization                                                VGA Separate, Composite & SOG

Regulatory

Safety                                                                   FCC & CE certified

Environmental                                                   RoHS2 & REACH compliant

Environmental Conditions

Operating

Temperature                                                     0 to 55°C degree

Humidity                                                              20~90%, non-condensing

Altitude                                                                16,000 ft

Storage / Non-operating

Temperature                                                     -20 to 60°C degree

Humidity                                                              5~90%, non-condensing

Altitude                                                                40,000 ft

Shock                                                                    10G acceleration (11ms duration)

Vibration                                                             5~500Hz 1G RMS random

Physical Specification

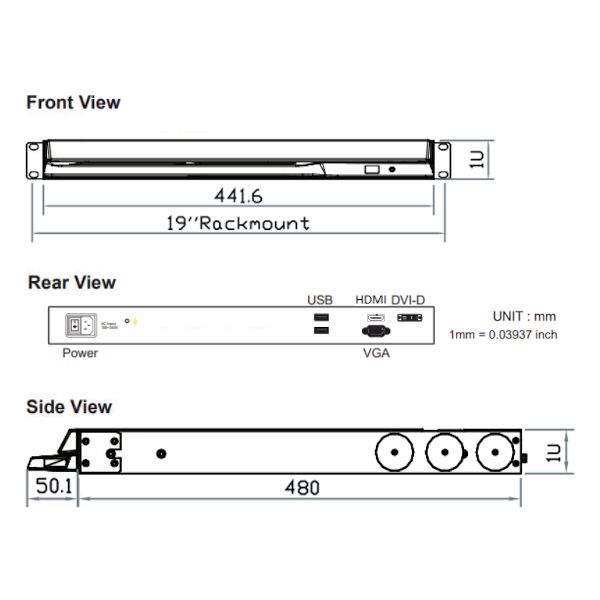

Product ( W x D x H )                                       441.6 x 480 x 44 mm, 17.4 x 18.9 x 1.73 inch

Packing ( W x D x H )                                       590 x 808 x 140 mm, 23.2 x 31.8 x 5.5 inch

Net Weight                                                         10.8 kg / 23.8 lb

Gross Weight                                                     15.8 kg / 34.8 lb

Applicable Format

DVI-D / VGA Input

PC Signal

1920 x 1080 x 60Hz

1360 x 768 x 60Hz

1280 x 1024 x 60 / 75Hz

1280 x 960 x 60Hz

1280 x 768 x 60 / 75Hz

1152 x 864 x 75Hz

1024 x 768 x 60 / 70 / 75Hz

848 x 480 x 60Hz

800 x 600 x 60 / 72 / 75Hz

720 x 400 x 70Hz

640 x 480 x 60 / 72 / 75Hz

640 x 400 x 70Hz 640 x 350 x 70Hz

HDMI Input

PC Signal                                                          Same as VGA

HDMI 1.4                                                          1920 x 1080 x 50 / 60Hz ( 1080p )

                                                                         1920 x 1080 x 25 / 30Hz ( 1080i )

                                                                         1280 x 720 x 50 / 60Hz ( 720p )

                                                                         720 x 480 x 50 / 60Hz ( 576p / 480p )

Audio Signal from HDMI                                  2ch Linear PCM
