SL-RMKB-17-USB

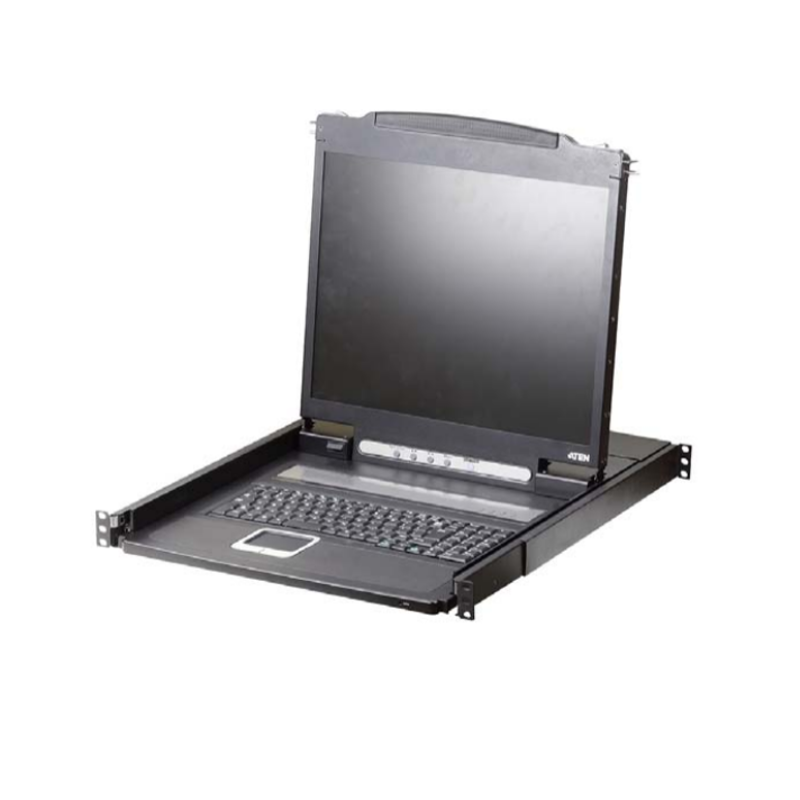

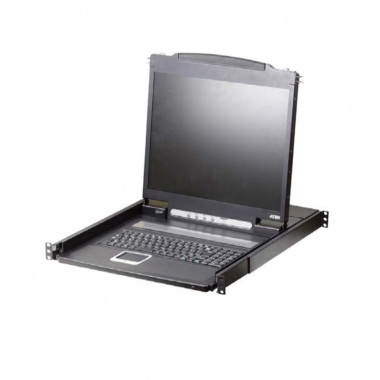

17" Single-Rail LCD Integrated Console - 1 Computer(s) - 17" Active Matrix TFT LCD - 1 x SPHD-15 Keyboard/Mouse/Video, standard mounting depth 16.6" to 28.3"

  • Exclusive LED illumination light to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17" LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
  • LCD module rotates up to 115 degrees for a more comfortable viewing angle
  • Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
  • Compatible with most PS/2 KVM Switches
  • Internal power supply
  • Adjustable depth to fit within a rack
  • High video resolution:
  • Supports input video resolutions up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
  • Supports DDC, DDC2, DDC2B
  • DDC emulation of the LCD monitor – Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
  • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
  • Improved design – optional single person installation kit

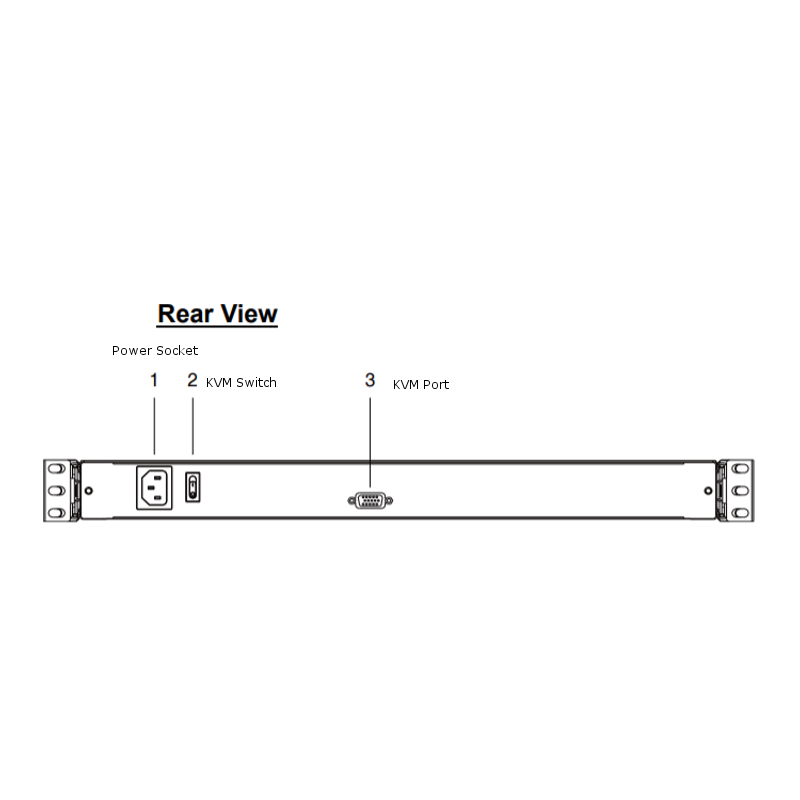

Connectors

  • KVM (Computer) Ports 1 x SPHD Female (Yellow)
  • Power 1 x 3-prong AC Socket

Switches

  • LCD Adjustment 4 x Pushbuttons
  • Reset 1 x Semi-recessed Pushbutton
  • Power 1 x Rocker

LEDs

  • Power 1 (Green)
  • Num Lock 1 (Green)
  • Caps Lock 1 (Green)
  • Scroll Lock 1 (Green)

Video

  • Input Video Resolution 1280 x 1024 @ 75 Hz; DDC, DDC2, DDC2B

Panel Spec

  • LCD Module 17" TFT-LCD
  • Pixel Pitch 0.264 mm x 0.264 mm
  • Support Color 16.7M colors
  • Contrast Ratio 1000 : 1
  • Luminance 250 cd/m²
  • Response time 5 ms
  • Viewing Angle 170° (H), 160° (V)
  • Resolution 1280 x 1024 @ 75 Hz

Emulation

  • Keyboard / Mouse PS/2

Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1A

  • Consumption 110V / 14.2W ; 220V / 15.5W

Environmental

  • Operating Temperature 0˚ to 50˚ C
  • Storage Temperature -20˚ to 60˚ C
  • Humidity 0 - 80% RH, Non-condensing

Physical Properties

  • Housing Metal+Plastic
  • Weight 12.02 kg
  • Dimensions (L x W x H) 48.00 x 53.83 x 4.40 cm
