SL-RMKB-17-WUXGA-TB-DVI-D

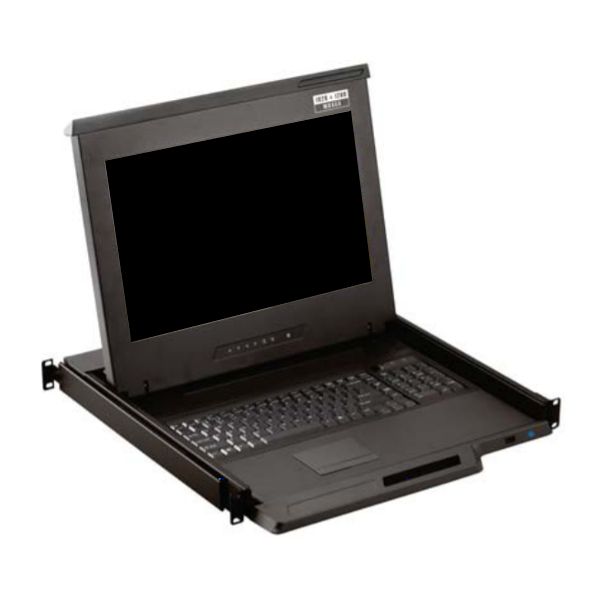

1U 17" widescreen LCD console drawer VGA and DVI-D Support WUXGA Ultra high resolution with 1920 X 1200 resolution; Green LED-backlit panel technology with 210 NITS Brightness, 104-key keyboard with trackball; Short depth design of 460mm ( 18.1" )

  • 1U 17" LCD console drawer
  • 1920 x 1200 WUXGA native resolution / 16.7M colors ( 8-bit )
  • HDMI 1.3 + DVI-D + VGA video input / USB KB / MS
  • 104-key keyboard with trackball
  • Short depth design of 480mm
  • One Man installation design
  • New enhanced aesthetics with molded front handle

LCD Panel

  • Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD
  • Display pixel ( dots x lines ) 1920 x 1200
  • Brightness ( typ. ) 210
  • Contrast Ratio ( typ. ) 600:1 Color 16.7 M, 8-bit
  • Viewing Angle ( L/R/U/D ) 65/65/55/55
  • Response Time ( ms ) 30
  • Dot pitch ( mm ) 0.191
  • Display Area ( mm ) 367.20H x 229.50V
  • Surface treatment Anti-glare, Hard-coating
  • Surface hardness 3H
  • Backlight Type LED
  • MTBF ( hrs ) 20,000

Video Connectivity

Digital

  • HDMI: HDMI 1.3, CEA-861-D
  • DVI: DVI-D, TMDS single link

Analog

  • VGA Analog 0.7Vp-p

Plug & Play DVI / VGA VESA EDID structure 1.3

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption for Single Console

  • Screen ON Max. 34W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Regulatory

  • Safety FCC & CE certified
  • Environmental RoHS2 & REACH compliant

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

Physical Specification

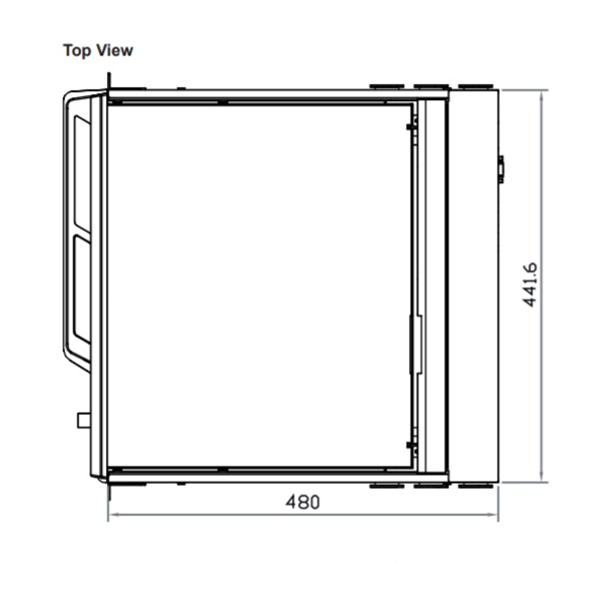

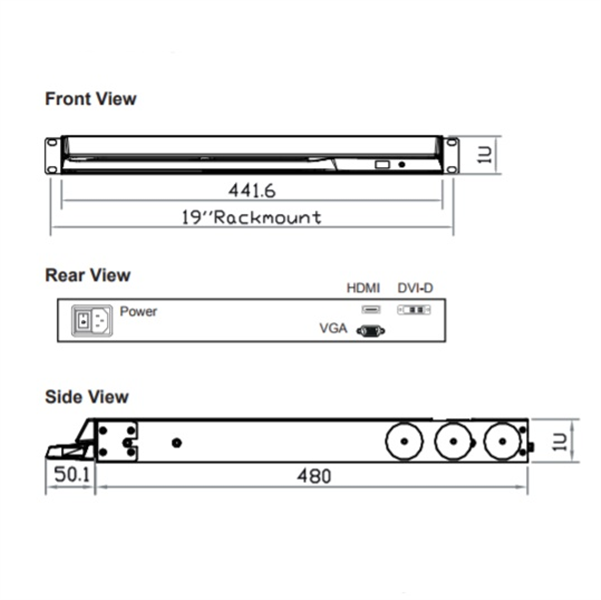

  • Product ( W x D x H ) 441.6 x 480 x 44 mm, 17.4 x 18.9 x 1.73 inch
  • Packing ( W x D x H ) 590 x 808 x 140 mm, 23.2 x 31.8 x 5.5 inch
  • Net Weight 10.9 kgs / 24 lbs
  • Gross Weight 15.8 kgs / 34.8 lbs
