SL-RMKB-17-WUXGA-TP-DVI-D

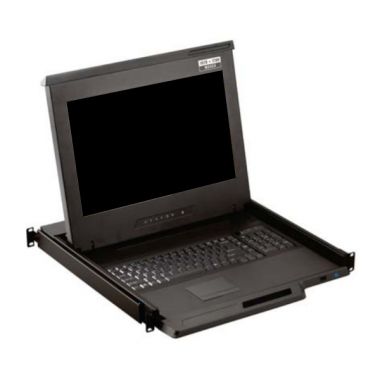

1U 17" widescreen LCD console drawer VGA and DVI-D Support WUXGA Ultra high resolution with 1920 X 1200 resolution; Green LED-backlit panel technology with 210 NITS Brightness, 104-key keyboard with touchpad; Short depth design of 460mm ( 18.1" )

1U 17
  • 17" RMKB Touchpad
  • Dimension
  • Top Dimension
  • 1U 17" widescreen LCD console drawer with DVI-D/HDMI/VGA input
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • Support Windows 7 / Vista / XP / Linux / Mac OS X
  • 104-Key Keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock
  • 3G / HD / SD-SDI Broadcast-grade input (Optional)
  • S-Video + Composite ( BNC ) & Audio input (Optional)
  • 48V, 24V or 12VDC input (Optional)
  • MIL-type or lockable connector (Optional)
Related Products
Technical Specifications

Specifications

LCD Panel
Size (diagonal)
17.1" TFT
Max resolution
1920 x 1200
Brightness (cd/m2)
210
Backlight
LED

Colors
1.07 Billion, 10-bit
Contrast ratio (typ)
800 : 1
Viewing angle (H/V)
178° x 178°
Active area (mm)
367 x 230
MTBF (hrs)
15,000
Signal input
VGA / DVI-D / HDMI w/Speaker
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, Non-condensing

Shock
10G Acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Casing Color
Black ( RAL 9005 )
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Dimensions

Product
17.4 x 18.9 x 1.73 inch
Packing
23.4 x 33.9 x 5.5 inch
Weight

Net
24.5 lbs
Certifications
CE, FCC, RoHS
