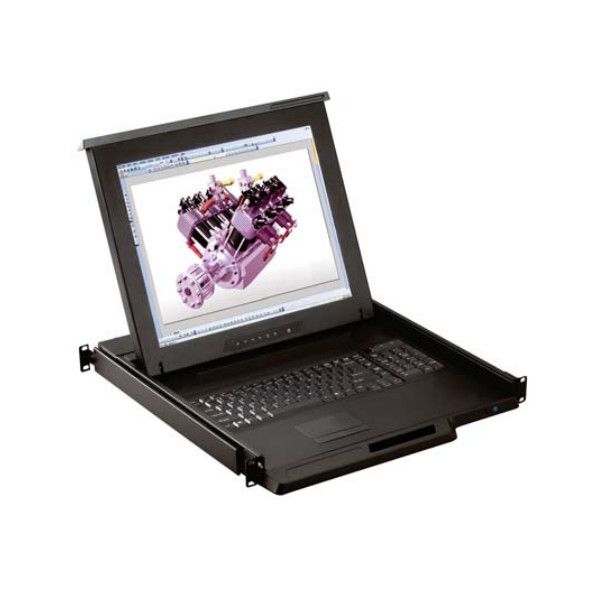

SL-RMKB-RKP119e

1U Rackmount 19" LCD Keyboard Drawer, USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Racks

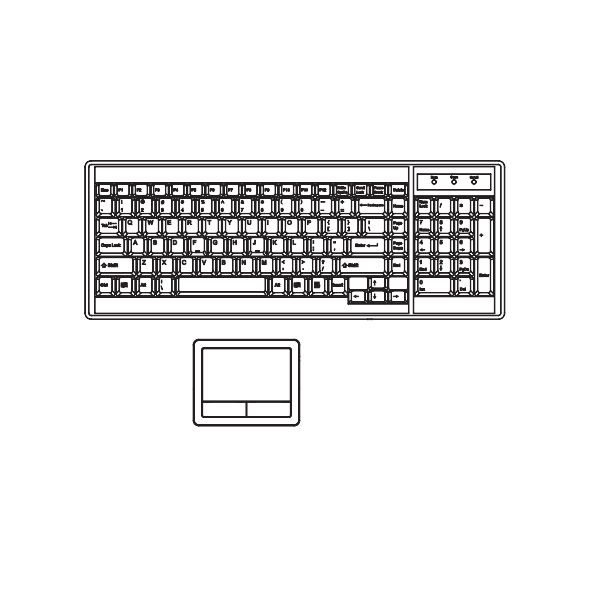

Keyboard with Touchpad

Benefits

  • 1U 19"  LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key keyboard with touchpad
  • Short depth design of 500mm
  • One Man installation design
  • New enhanced aesthetics with molded front handle

Console Port

Video input

  • VGA

KB / MS

  • Combo ( USB or PS2 )

VGAconsole 6ft cable : CB-6 KB

  • Drawer end : DB-15 ( VGA + USB KB / MS )
  • Server end : VGA + USB type A

LCD Panel

  • Panel size ( diagonal ) 19"
  • Native resolution 1280 x 1024
  • Brightness ( cd/m² ) 250
  • Contrast ratio ( typ. ) 1000 : 1
  • Colors 16.7 M
  • Viewing angle ( L/R/U/D ) 85/85/80/80
  • Response time ( ms ) 5
  • Dot pitch ( mm ) 0.294
  • Display area ( mm ) 376.32H x 301.06V
  • Surface treatment Haze 25%, Hard-coating
  • Surface hardness 3H
  • Backlight type LED
  • MTBF (hrs) 30,000

Power

  • Input Auto-sensing 100 to 240VAC, 50 / 60Hz

Consumption

  • Screen on Max. 25W
  • Power saving mode Max. 4W
  • Power button on Max. 1W

Environment

  • Operating temp. -20 to 65°C degree
  • Storage temp -20 to 60°C degree
  • Operating humidity 20~90%, non-condensing
  • Storage humidity 5 ~90%, non-condensing
  • Operating altitude 16,000 ft
  • Non-operating altitude 40,000 ft
  • Shock 10G acceleration ( 11ms duration )
  • Vibration 10~300Hz 0.5G RMS random vibration

Compliance

  • EMC FCC, CE & CCC certified
  • Safety c UL us, CE / LVD & CCC certified
  • Environment RoHS2 & REACH compliant

Physical

  • Product ( W x D x H ) 442 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch
  • Packing ( W x D x H ) 590 x 808 x 140 mm. 23.2 x 31.8 x 5.5 inch
  • Net weight 12.7 kg / 27.9 lb
  • Gross weight 17.3 kg / 38.1 lb

Mounting Distance

Single console drawer 510 ~ 740 mm, 20.1 ~ 29.1 inch
