SL-RMKB-W119b

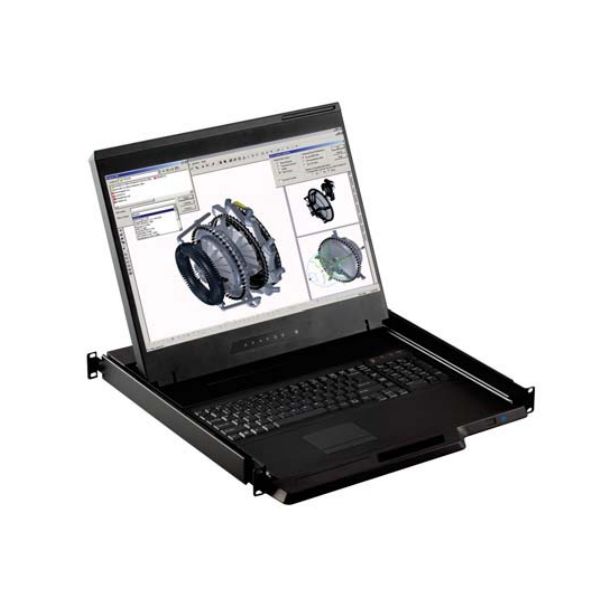

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (Short Depth: 18.1") with integrated keyboard and trackball (DVI-D inputs), Includes cables for USB connections

Keyboard with Trackball

  • 1U 19" widescreen LCD console drawer
  • 104-key keyboard with trackball
  • Enhanced aesthetics with molded front handle
  • Short depth design of only 460mm ( 18.1" )

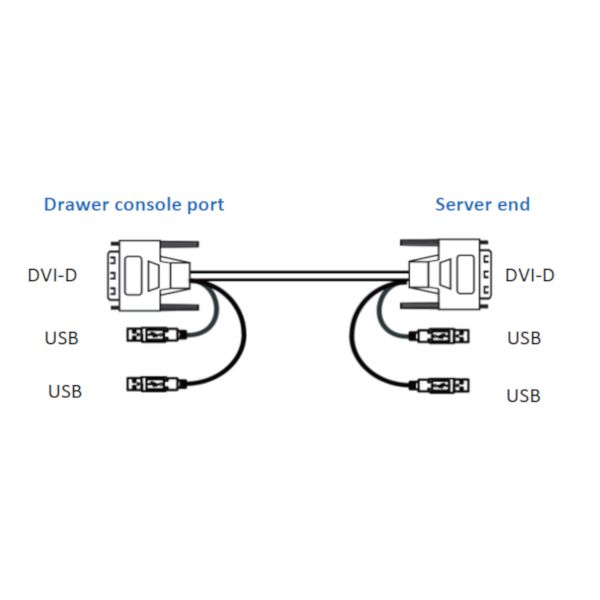

  • Supplied with power adapter, 6' USB/DVI cable, mounting bracket and screws

LCD Panel

  • Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD
  • Display pixel ( dots x lines ) 1440 x 900
  • Brightness ( typ. ) 300
  • Contrast Ratio ( typ. ) 1000:1
  • Color 16.7 M
  • Viewing Angle ( L/R/U/D ) 80/80/80/80
  • Response Time ( ms ) 5
  • Dot pitch ( mm ) 0.2835
  • Display Area ( mm ) 408.24H x 255.15V
  • Surface treatment Haze 25%, Hard-coating
  • Surface hardness 3H
  • Backlight Type CCFL
  • MTBF ( hrs ) 50,000

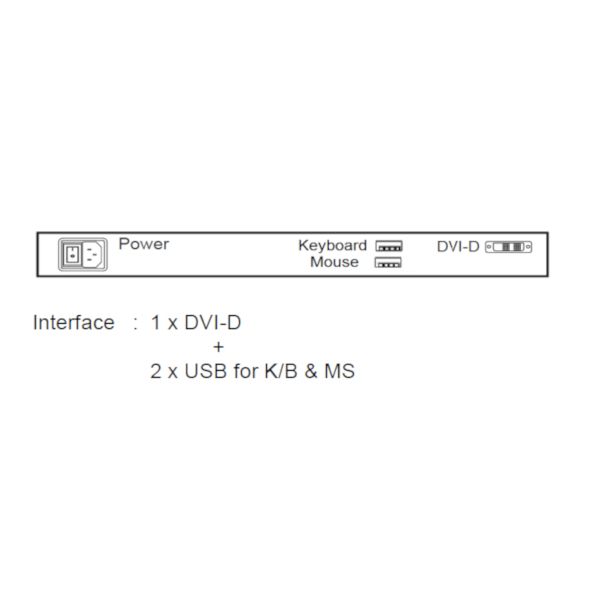

Video Connectivity

  • DVI DVI-D, TMDS single link

Plug & Play DVI VESA EDID structure 1.3

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption for Single Console

  • Screen ON Max. 25W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Regulatory

  • Safety cUL, FCC & CE certified
  • Environmental RoHS2 & REACH compliant

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft
  • Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

Physical Specification



  • Product ( W x D x H ) 441.6 x 460 x 44 mm 17.4 x 18.1 x 1.73 inch
  • Packing ( W x D x H ) 590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch
  • Net Weight 11.5 kgs / 25.3 lbs
  • Gross Weight 16 kgs / 35.2 lbs
