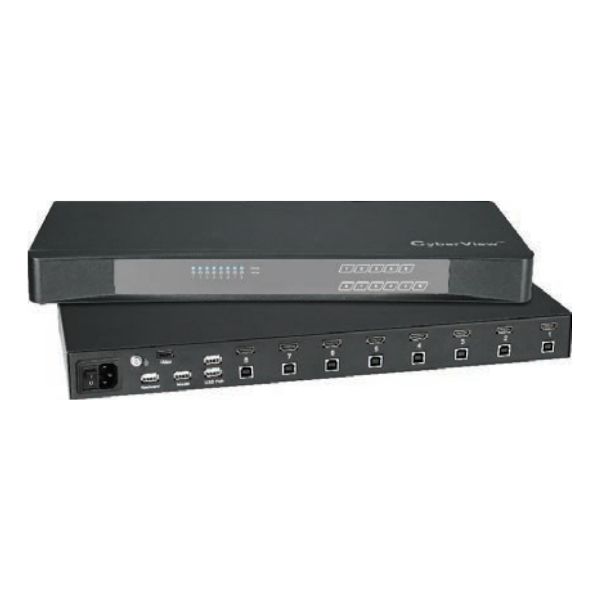

SL-KVM-8-CV-801K-4K

4K 60Hz KVM Switch - HDMI - USB - 8 Ports

Features

  • 4K KVM with 8 HDMI USB ports in
  • 1U 4K KVM cables support DP & HDMI video input
  • USB hub port share peripheral devices among computers
  • Local console & KVM ports support resolution 4K, 2K and 1080p.
  • Multi-platform for PC, server, blade server & SUN / MAC
  • Port switching via front button & keyboard hotkeys
  • Hot pluggable, no software or drivers required

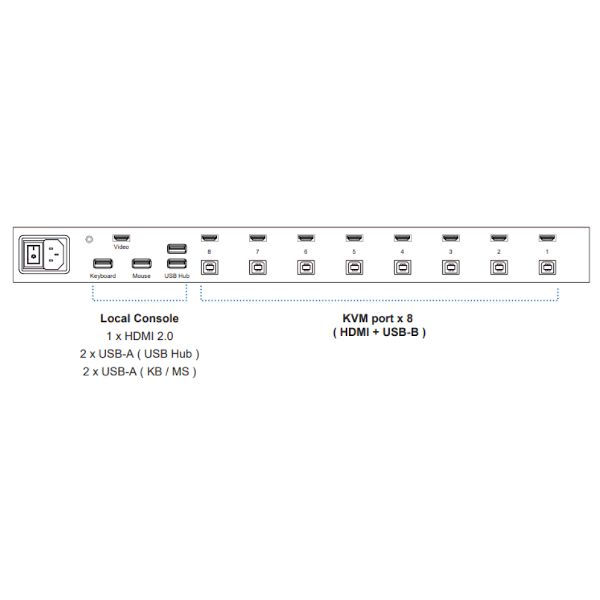

KVM Port

Number of ports:                                             8

Connector:                                                          HDMI 2.0 + USB-B ( Video + KB / MS )

Resolution:

16 : 9 - max. 3840 x [email protected]

16 : 10 - max. 1920 x [email protected]

4 : 3 - max. 1600 x [email protected]



Local Console

Keyboard / Mouse:                                          2 x USB-A

Video:                                                                   1 x HDMI 2.0

Resolution:

16 : 9 - max. 3840 x [email protected]

16 : 10 - max. 1920 x [email protected]

4 : 3 - max. 1600 x [email protected]



Management

PC Selection:                                                      Front button & keyboard hotkey



Compatibility

Hardware:                                                           HP / IBM / Dell PC, Server and Blade Server SUN / Mac

OS Support:                                                        Windows / Linux / Unix / Mac OS



Power

Input:                                                                    Auto sensing 100 to 240VAC, 50 / 60 Hz

Consumption:                                                    Max. 10W



Regulatory

Safety:                                                                  FCC & CE certified

Environment:                                                     RoHS2 & REACH compliant



Environmental

Operating

Temperature:                                                    0 to 55°C degree

Humidity:                                                            20~90%, non-condensing

Altitude:                                                               16,000 ft

Shock:                                                                   10G acceleration (11ms duration)

Vibration:                                                            10~300Hz 0.5G RMS random



Storage / Non-operating

Temperature:                                                    -20 to 60°C degree

Humidity:                                                            5~90%, non-condensing

Altitude:                                                               40,000 ft

Shock:                                                                   10G acceleration (11ms duration)

Vibration:                                                            10~300Hz 0.5G RMS random



Product Information

Dimension (W x D x H):                                  443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch

Net Weight:                                                        2.5 kg / 5.5 lb.



Packing Information

Dimension (W x D x H):                                  500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch

Gross Weight:                                                    5.4 kg / 11.9 lb.
