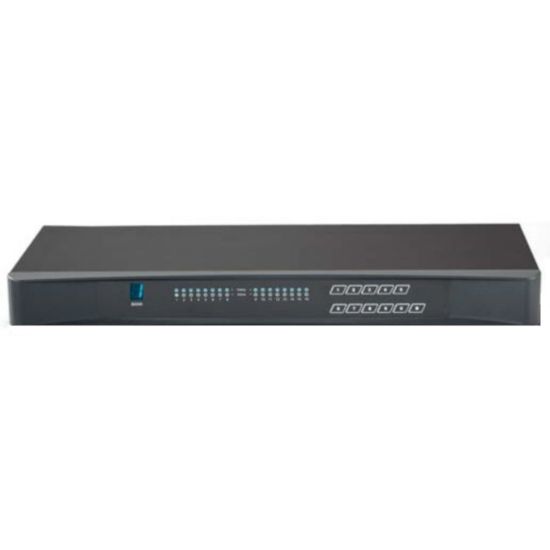

SL-KVM-8-IP-802

KVM Switch - DB-15 8-Port, USB, 1 Local, 1IP User External. w/ 8 x cables

IP Console

DB-15 KVM with 8 ports in 1U

Local console & KVM ports support resolution up to 1920 x 1200

IP Console ports support resolution 4:3 - max. 1600 x 1200

Multi-platform for PC, server, Blade Server & SUN / MAC

Port switching via OSD, front button & keyboard hotkeys

Multi lingual OSD menu

Hot pluggable, no software or drivers required

Cascade levels up to 8 KVM switches

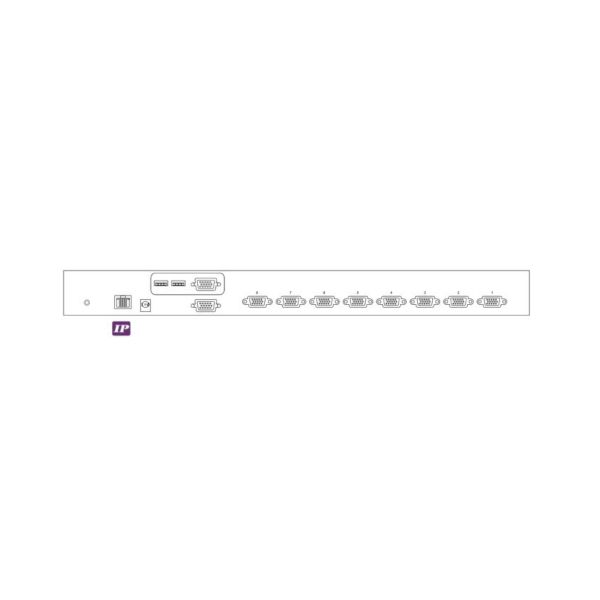

KVM Port

  • Port # : 8
  • Connector : DB-15
  • Connectivity : VGA + USB KB / MS 2-in-1 KVM cable
  • Resolution : 16:10 - max. 1920 x 1200 / 4:3 - max. 1600 x 1200

Local Console

  • Graphic Connector : 1 x DB-15 VGA
  • Input device : 2 x USB type A for keyboard & mouse
  • Resolution : 16:10 - max. 1920 x 1200 / 4:3 - max. 1600 x 1200

IP Console

  • Connector : RJ45
  • User management : 1 x active user, 15-user login
  • Network protocol : DHCP / BOOTP / DNS
  • Security : SSL v3, RSA, AES, HTTP / HTTPs, CSR
  • Browser : Internet Explorer
  • Resolution : 4:3 - max. 1600 x 1200

KVM Cascade

  • 8-level cascade up to 128 servers
  • KVM cascade via CBC-6
  • Level 2 - 8 KVM must be basic models : CV-S801 / CV-S1601
  • 1st level KVM takes all control of slave KVMs

 Management

  • Port switching OSD, front button & keyboard hotkeys
  • Expansion 8-level cascade up to 128 servers

Compatibility

  • Hardware HP / IBM / Dell PC, Server and Blade Server SUN / Mac
  • OS support Windows / Linux / Unix / Mac OS

Environment

  • Operating temp. 0 to 55°C degree
  • Storage temp -20 to 60°C degree
  • Operating humidity 20~90%, non-condensing
  • Storage humidity 5 ~90%, non-condensing
  • Operating altitude 16,000 ft
  • Non-operating altitude 40,000 ft
  • Shock 10G acceleration ( 11ms duration )
  • Vibration 10~300Hz 0.5G RMS random vibration

Power

  • Input Auto-sensing 100 to 240VAC, 50 / 60Hz
  • Consumption Max. 19W

Compliance

  • Safety cUL, FCC & CE certified
  • Environment RoHS2 & REACH compliant

Physical

  • Product (W x D x H) 443 x 171 x 44 mm 17.4 x 6.7 x 1.73 inch
  • Packing (W x D x H) 500 x 400 x 90 mm 19.7 x 15.7 x 3.5 inch
  • Weight
  • Net 2.6 kg / 5.7 lb
  • Gross 4.2 kg / 9.2 lb
  • Chassis color Dark
  • Chassis materials Steel
