SL-LCD-15AWHD-RTOUCH-RK

7U 15.6" LED Monitor with 5-Wire Resistive Touch Screen - 1920 x 1080 Resolution, 250 NITS Brightness, IP65 / NEMA4 Front Panel, Black

7U Rackmount 15.6

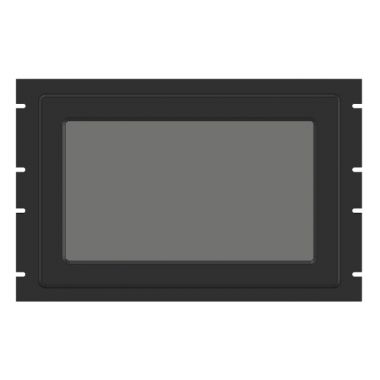

  • Front
  • Angle
  • Bottom View

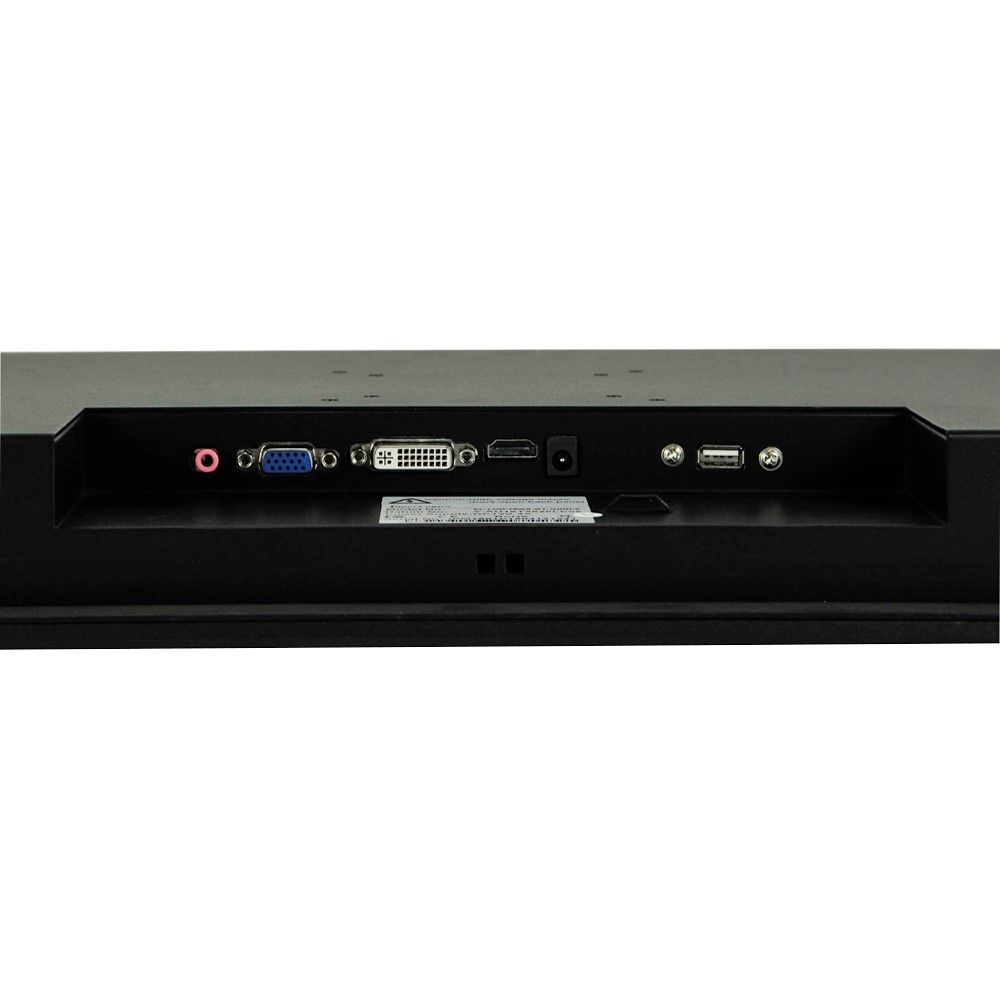

  • Bottom Close Up

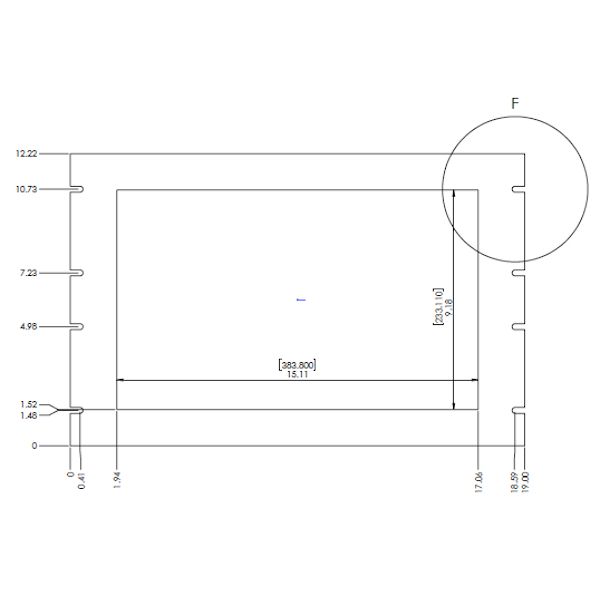

  • Dimension
  • Included Accessories
Included Rackmount Bracket

Industrial Display

  • Screen Size (inches): 7U 15.6"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16:9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Ports: VGA Port In, DVI-I In, HDMI In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Technical Specifications
Available Downloads
  • Display
  • Screen Size (inches): 7U 15.6
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16:9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Display Area (H): 344.16mm
  • Display Area (V): 193.59mm
  • Aspect Ratio: 16:9
  • DisplayColors: 16.2 M
  • Contrast Ratio: 400:1
  • Backlight: LED
  • Viewing Angle(U) : 70
  • Viewing Angle(D) : 70
  • Viewing Angle(L) : 60
  • Viewing Angle(R) : 60
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): Click Technical Specifications Tab > Mechanical Drawings.
  • Suggested Cut-Out Dimension (Height): Click Technical Specifications Tab > Mechanical Drawings.
  • Physical
  • Width: Click Technical Specifications Tab > Mechanical Drawings.
  • Height: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth (Inches): Click Technical Specifications Tab > Mechanical Drawings.
  • Unboxed Weight: 10lbs
  • Shipping Weight: 30lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 13Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CB
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
