SL-RMPD-19-Touch This item is no longer available.

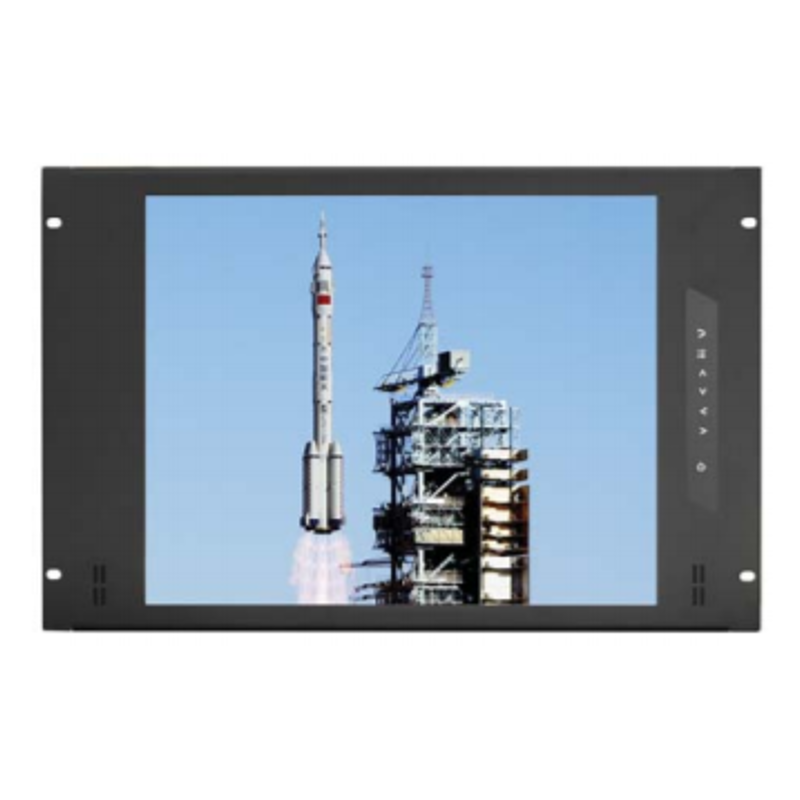

8U Rackmount 19" TFT LCD Display with e-Resistive touchscreen & serial controller.

A newer version of this item is available: SL-RMPD-RP-819-TOUCH

Display Features & Benefits

  • Ideal for CCTV security & industrial control
  • 8U 19" rackmount Resistive Touchscreen with Serial Controller
  • I/O - DVI-D / VGA input
  • Casing Color - Black
  • Max Resolution 1280 x 1024
  • Brightness  (cd/m²) 250
  • Backlight  LED
  • Net weight 7 kgs / 15 lbs

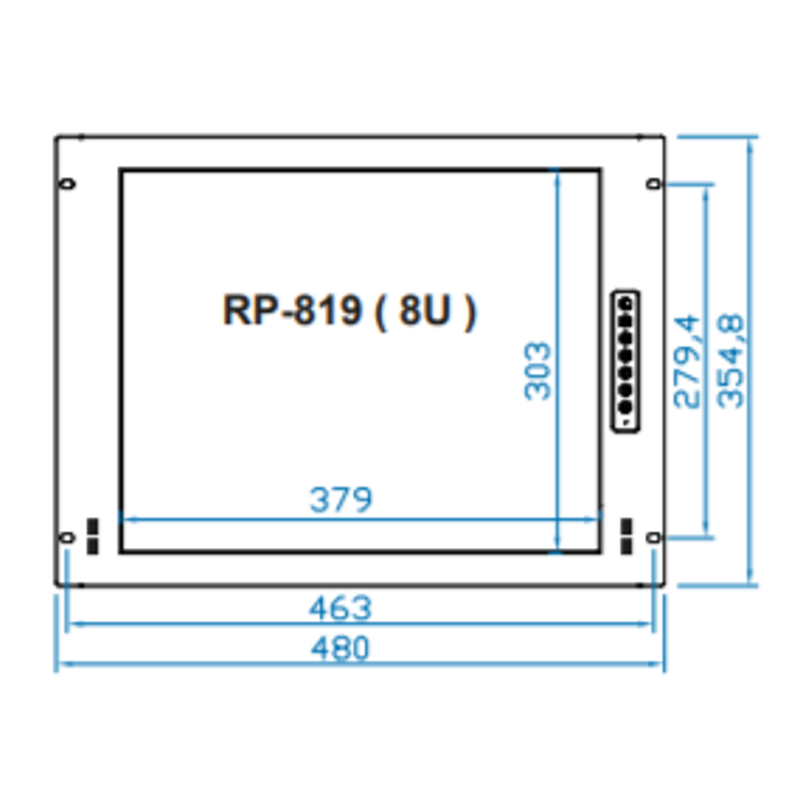

  • Dimensions 18.9 x 2.1 x 14 inch
  • Power Consumption - Max. 48 Watt, Standby 5 Watt
  • Power Input - Auto-sensing 100 to 240VAC, 50 / 60Hz



Item Description
Model RP-819
LCD Manufacturer AUO
Diagonal Size 19" TFT
Max. Resolution 1280 x 1024
Brightness (cd/m²) 250
Backlight LED
Color Support 16.7 M
Contrast Ratio (typ.) 1000:1
Viewing Angle (H/V) 170˚ x 160˚
Display Area (mm) 376 x 301
Tr Response Time (ms) 1.3
LCD Panel MTBF (hrs) 30,000
Signal Input VGA or DVI-D
Casing color Black
Net weight 7 kgs / 15 lbs
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Max. 48 Watt, Standby 5 Watt
Regulation Approval Safety : FCC & CE certified
Environment: RoHS2 & REACH compliant

Environmental

Operation 0˚ to 50˚C Degree
Storage -5˚ to 60˚C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
