SL-RMPD-RP-717

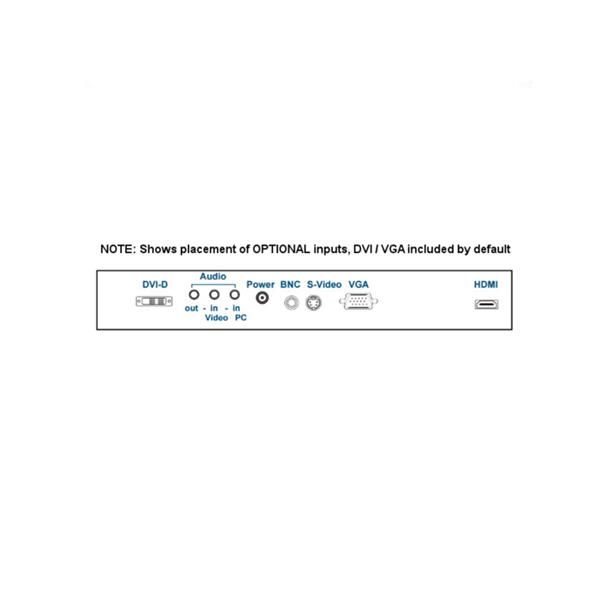

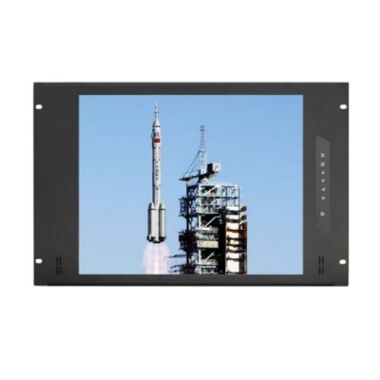

7U Rackmount 17" TFT LCD Monitor Panel, 1024 X 768 (DVI-D and VGA inputs); Power: Auto-sensing 100 to 240VAC, 50 / 60Hz

  • 7U 17" Rackmount LCD with DVI-D / VGA Input
  • Max Resolution 1280 x 1024
  • Ideal for CCTV security & Industrial Control
  • Power: Auto-sensing 100 to 240VAC, 50 / 60Hz

LCD Panel

  • Panel Size ( diagonal ) 17-inch TFT color LCD
  • Display pixel ( dots x lines ) 1280 x 1024
  • Brightness ( typ. ) 250
  • Contrast Ratio ( typ. ) 1000:1
  • Color 16.7 M
  • Viewing Angle ( L/R/U/D ) 85/85/80/80
  • Response Time ( ms ) 5
  • Dot pitch ( mm ) 0.264
  • Display Area ( mm ) 337.92H x 270.33V
  • Surface treatment Haze 25%, Hard-coating
  • Surface hardness 3H
  • Backlight Type LED
  • MTBF ( hrs ) 30,000

Video Connectivity

Digital

  • DVI DVI-D, TMDS single link

Analog

  • VGA Analog 0.7Vp-p

Plug & Play DVI / VGA VESA EDID structure 1.3

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

  • Screen ON Max. 25W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Regulatory

  • Safety FCC & CE certified
  • Environmental RoHS2 & REACH compliant

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft
  • Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

Physical Specification

Product ( W x D x H )

  • 480 x 54.2 x 310 mm
  • 18.9 x 2.1 x 12.2 inch

Packing ( W x D x H )

  • 529 x 124 x 495 mm
  • 20.8 x 4.9 x 19.5 inch

Net Weight 6.1 kgs / 13.4 lbs

Gross Weight 8.2 kgs / 18 lbs
