SL-RMPD-RP-F617-Touch

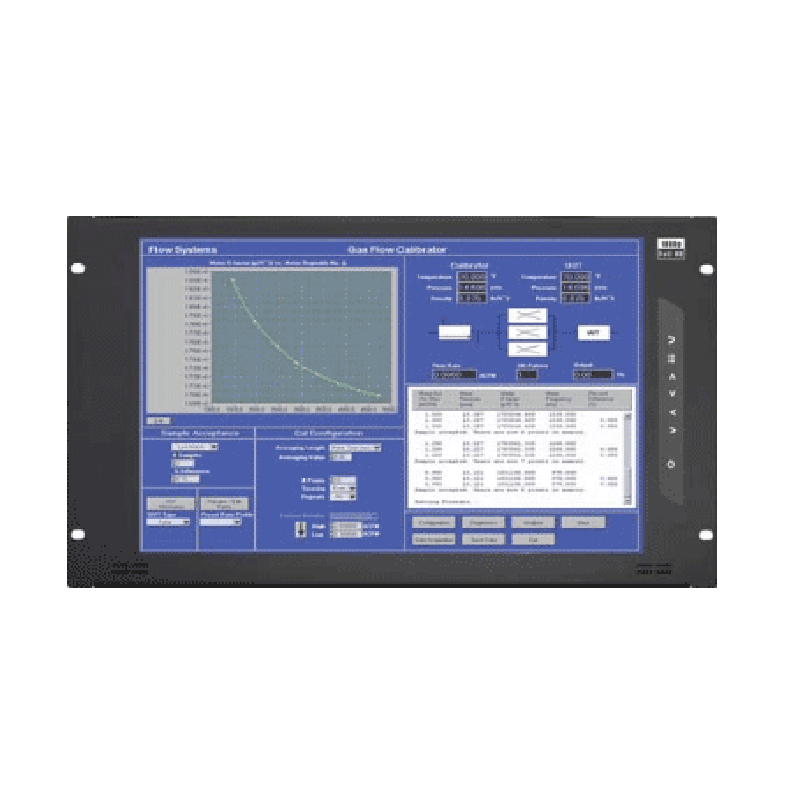

6U 17.3" Widescreen Full HD Rackmount USB Touch Display Panel with VGA and HDMI inputs

Special Order Item, Delivery approximately 3 weeks

6U Rackmount

17.3" Widescreen TFT

USB Touchscreen

1920 x 1080 Resolution

Brightness : 400 nits

Input Signal : VGA + HDMI

Resistive touch screen, 1-pt

LCD Panel

  • Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD
  • Resistive touch screen, 1-pt
  • Display pixel ( dots x lines ) 1920 x 1080
  • Brightness ( typ. ) 400
  • Contrast Ratio ( typ. ) 600:1
  • Color 16.7 M, 8-bit
  • Viewing Angle ( L/R/U/D ) 80/80/60/80
  • Response Time ( ms ) 40 Dot pitch ( mm ) 0.1989
  • Display Area ( mm ) 381.888H x 214.812V
  • Surface treatment Anti-glare, Hard-coating Surface hardness 3H
  • Backlight Type LED
  • MTBF ( hrs ) 50,000

Power

Power Supply

  • Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

  • Screen ON Max. 25W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft
  • Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

Physical Specification

  • Product ( W x D x H ) 480 x 48 x 266 mm 18.9 x 1.9 x 10.5 inch
  • Packing ( W x D x H ) 529 x 124 x 451 mm 20.8 x 4.9 x 17.8 inch
  • Net Weight 4.5 kgs / 9.9 lbs
  • Gross Weight 6 kgs / 13.2 lbs

Regulatory

  • Safety FCC & CE certifi ed
  • Environmental RoHS2 & REACH compliant
