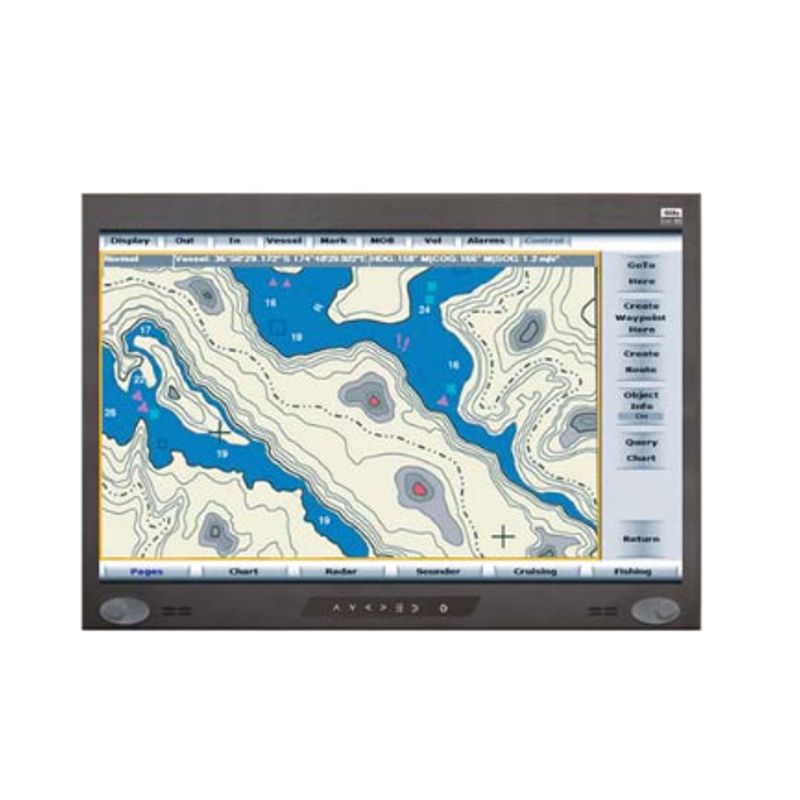

SL-RMPD-RP-F821

8U 21.5" Widescreen Full HD Rackmount Display Panel with VGA + HDMI

8U Rackmount

21.5" Widescreen TFT

1920 x 1080 Resolution

Brightness : 250 nits

Input Signal : VGA + HDMI

LCD Panel

  • Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD
  • Display pixel ( dots x lines ) 1920 x 1080
  • Brightness ( typ. ) 250
  • Contrast Ratio ( typ. ) 1000:1
  • Color 16.7 M
  • Viewing Angle ( L/R/U/D ) 85/85/80/80
  • Response Time ( ms ) 5
  • Dot pitch ( mm ) 0.248
  • Display Area ( mm ) 476.64H x 268.11V
  • Surface treatment Haze 25%, Hard-coating Surface hardness 3H
  • Backlight Type LED
  • MTBF ( hrs ) 30,000

Video Connectivity

  • Plug & Play DVI / VGA VESA EDID structure 1.3
  • Synchronization VGA Separate, Composite & SOG
  • HDMI

Environmental Conditions

Operating

  • Temperature 0 to 55°C degree
  • Humidity 20~90%, non-condensing
  • Altitude 16,000 ft

Storage / Non-operating

  • Temperature -20 to 60°C degree
  • Humidity 5~90%, non-condensing
  • Altitude 40,000 ft
  • Shock 10G acceleration (11ms duration)
  • Vibration 5~500Hz 1G RMS random

Power

  • Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

  • Screen ON Max. 32W
  • Power saving mode Max. 4W
  • Power button OFF Max. 1W

Physical Specification

  • Product ( W x D x H ) 501.9 x 64 x 353 mm 19.8 x 2.5 x 13.9 inch
  • Packing ( W x D x H ) 585 x 124 x 557 mm 23 x 4.9 x 21.9 inch
  • Net Weight 10.3 kgs / 22.7 lbs
  • Gross Weight 12.7 kgs / 27.9 lbs

Regulatory

  • Safety FCC & CE certifi ed
  • Environmental RoHS2 & REACH compliant
