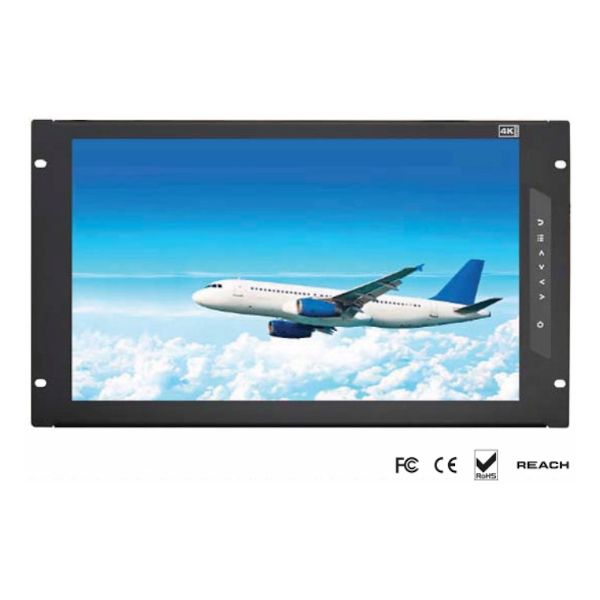

SL-RMPD-RP-K617
6U 17.3" Widescreen 3840 x 2160 Rackmount Display Panel with DisplayPort + HDMI 1.4 + HDMI 2.0
Features
- 6U 17" 4K LCD display panel
- 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
- 1920 x 1080 & 1920 x 1200 resolution support
- Display port 1.2 + HDMI 1.4 + HDMI 2.0 video input
- PIP Sub-screen & PBP Dual-screen viewing efficiency
- Built-in dual stereo speakers
LCD Panel
Native Resolution 3840 x 2160
Panel Size ( diagonal ) 17.3-inch TFT color LCD
Brightness ( cd/m² ) 300
Contrast Ratio ( typ. ) 1000:1
Colors 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 89/89/89/89
Response Time ( ms ) 16 Dot pitch ( mm ) 0.0995
Display Area ( mm ) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 20,000
Video
Digital
Display port DP 1.2 / HDCP 1.3
HDMI HDMI 1.4 / HDCP 1.4
HDMI 2.0 / HDCP 2.2
Audio
Audio Output
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker Dual Stereo Speaker 2W x 2
Power
Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Screen ON Max. 29W
Power saving mode Max. 9W
Power button OFF Max. 2W
Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
Environmental Conditions
Operating
Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical Specification

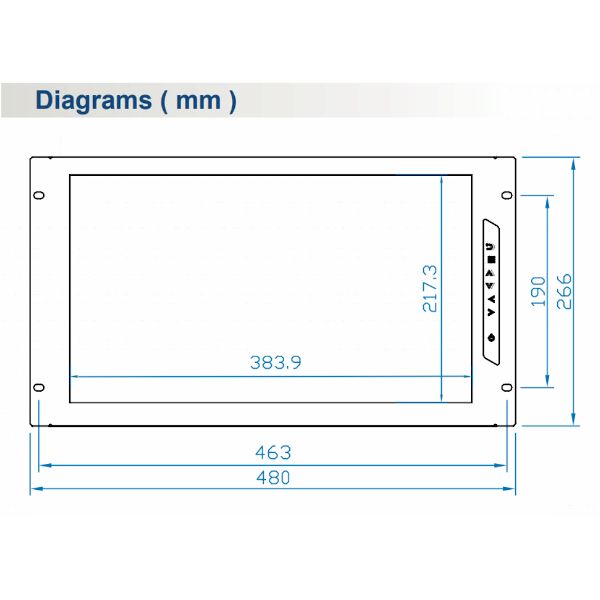

Product ( W x D x H ) 480 x 48 x 266 mm, 18.9 x 1.9 x 10.5 inch
Packing ( W x D x H ) 529 x 124 x 451 mm, 20.8 x 4.9 x 17.8 inch
Net Weight 4.2 kg / 9.2 lb
Gross Weight 6.2 kg / 13.6 lb
Applicable Format
Display Port Input
PC Signal
3840 x 2160 x 60Hz
1920 x 1080 x 60Hz
1600 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 768 x 60Hz
1024 x 768 x 60 / 70 / 75Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
HDMI Input
HDMI 2.0 3840 x 2160 x 60Hz
HDMI 2.0 / 1.4
3840 x 2160 x 30Hz
1920 x 1080 x 50 / 60Hz ( 1080p )
1920 x 1080 x 25 / 30Hz ( 1080i )
1280 x 720 x 50 / 60Hz ( 720p )
720 x 480 x 50 / 60Hz ( 576p / 480p )
Audio Signal 2ch Linear PCM
