Video

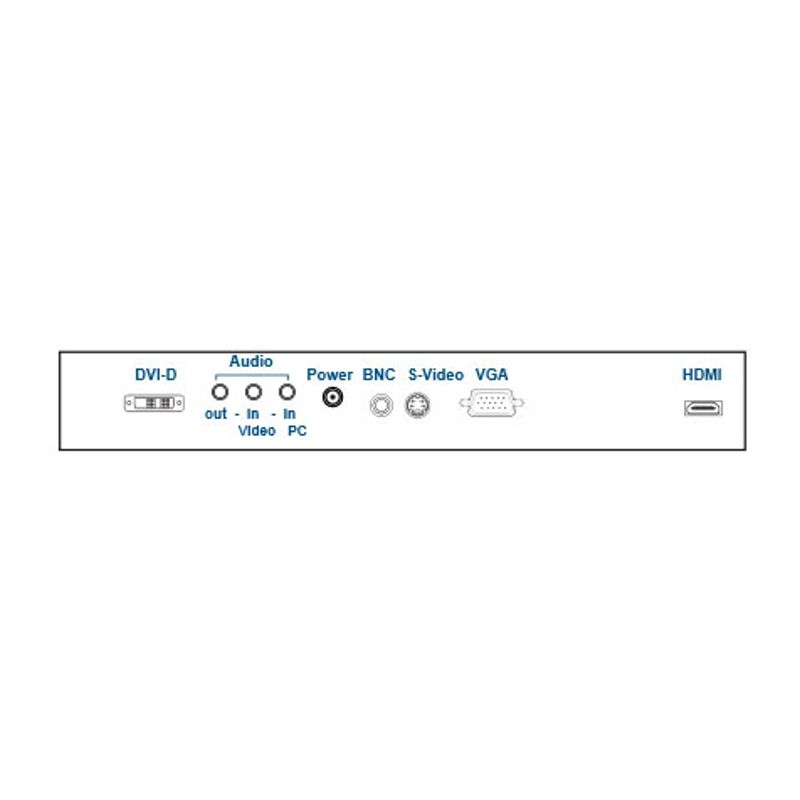

• Video input HDMI 1.3 + DVI-D single link + VGA

LCD Panel

• Panel size ( diagonal ) 17.1"
• Native resolution 1920 x 1200
• Brightness ( cd/m² ) 210
• Contrast ratio ( typ. ) 600 : 1
• Colors 16.7 M, 8-bit
• Viewing angle ( L/R/U/D ) 65/65/55/55
• Response time ( ms ) 30
• Dot pitch ( mm ) 0.191
• Display area ( mm ) 367.2H x 229.5V
• Surface treatment Anti-glare, Hard-coating
• Surface hardness 3H
• Backlight type LED
• MTBF (hrs) 20,000

Audio Option

Input

• Connector 3.5mm stereo jack
• Impedance / Power level 30kȍ / 750mV

Output

• Connector 3.5mm stereo jack
• Resistance / Power level 30kȍ / 2.8V

Speaker

• Dual stereo 2W x 2

Power

• Input Auto-sensing 100 to 240VAC, 50 / 60Hz

Consumption

• Screen on Max. 34W
• Power saving mode Max. 4W
• Power button on Max. 1W

Environment

• Operating temp. 0 to 55°C degree
• Storage temp. -20 to 60°C degree
• Operating humidity 20~90%, non-condensing
• Storage humidity 5 ~90%, non-condensing
• Operating altitude 16,000 ft
• Non-operating altitude 40,000 ft
• Shock 10G acceleration ( 11ms duration )
• Vibration 10~300Hz 0.5G RMS random vibration

Compliance

• EMC Safety FCC & CE certified
• Safety CE / LVD certified
• Environment RoHS2 & REACH compliant

Physical

Dimensions ( W x D x H )

• Product 480 x 48 x 266 mm 18.9 x 1.9 x 10.5 inch
• Packing 529 x 124 x 451 mm 20.8 x 4.9 x 17.8 inch

Weight

• Net 4.2 kg / 9.2 lb
• Gross 6.2 kg / 13.6 lb
