SL-RMPD-RP-X617

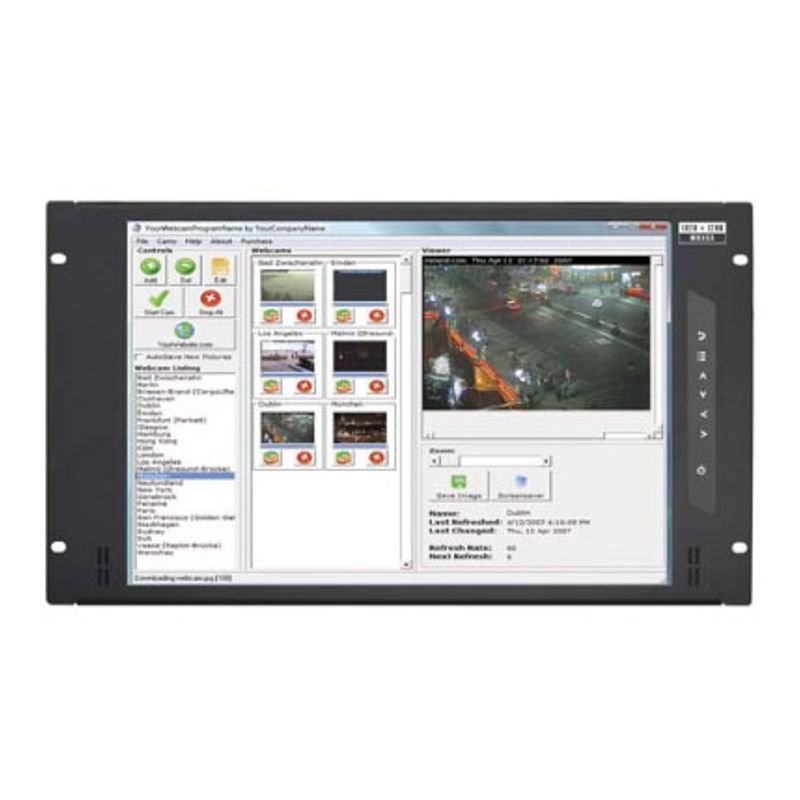

6U 17.1" Widescreen 1920 x 1200 Rackmount Display Panel with VGA + DVI-D + HDMI w/ speaker + S-Video + BNC + Audio

6U 17.1
  • Front

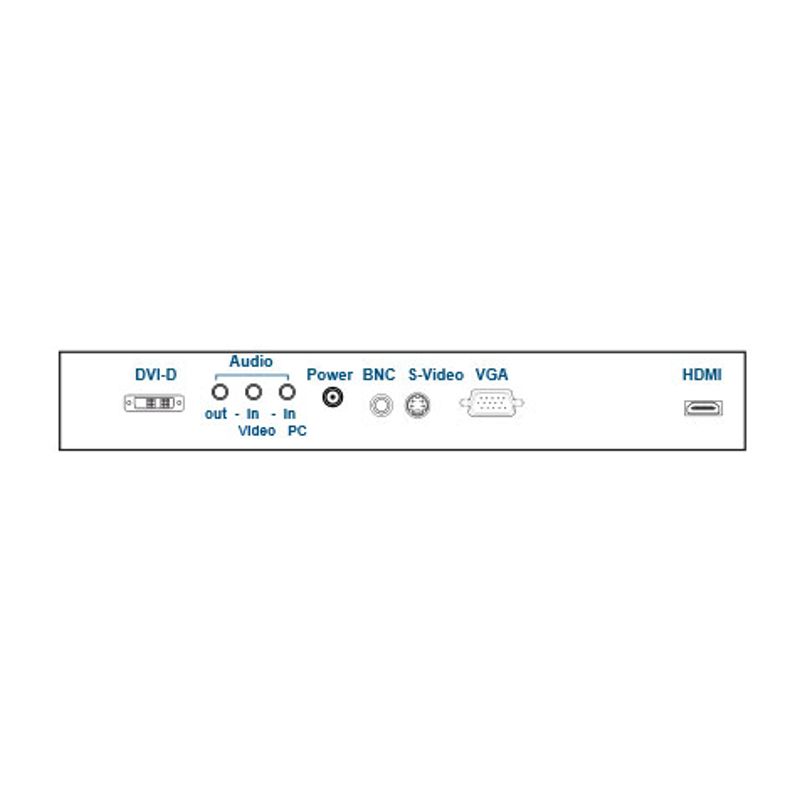

  • Rear I/O

6U Rackmount

17.1" Widescreen TFT

1920 x 1200 Resolution

Brightness : 210 nits

Signal Input : VGA + DVI-D + HDMI + BNC + S-Video + audio

Related Products
Technical Specifications

Video

  • Video input HDMI 1.3 + DVI-D single link + S-Video + BNC + VGA

LCD Panel

  • Panel size ( diagonal ) 17.1"
  • Native resolution 1920 x 1200
  • Brightness ( cd/m² ) 210
  • Contrast ratio ( typ. ) 600 : 1
  • Colors 16.7 M, 8-bit
  • Viewing angle ( L/R/U/D ) 65/65/55/55
  • Response time ( ms ) 30
  • Dot pitch ( mm ) 0.191
  • Display area ( mm ) 367.2H x 229.5V
  • Surface treatment Anti-glare, Hard-coating
  • Surface hardness 3H
  • Backlight type LED
  • MTBF (hrs) 20,000

Audio Option

Input

  • Connector 3.5mm stereo jack
  • Impedance / Power level 30kȍ / 750mV

Output

  • Connector 3.5mm stereo jack
  • Resistance / Power level 30kȍ / 2.8V

Speaker

  • Dual stereo 2W x 2

Power

  • Input Auto-sensing 100 to 240VAC, 50 / 60Hz

Consumption

  • Screen on Max. 34W
  • Power saving mode Max. 4W
  • Power button on Max. 1W

Environment

  • Operating temp. 0 to 55°C degree
  • Storage temp. -20 to 60°C degree
  • Operating humidity 20~90%, non-condensing
  • Storage humidity 5 ~90%, non-condensing
  • Operating altitude 16,000 ft
  • Non-operating altitude 40,000 ft
  • Shock 10G acceleration ( 11ms duration )
  • Vibration 10~300Hz 0.5G RMS random vibration

Compliance

  • EMC Safety FCC & CE certified
  • Safety CE / LVD certified
  • Environment RoHS2 & REACH compliant

Physical

Dimensions ( W x D x H )

  • Product 480 x 48 x 266 mm 18.9 x 1.9 x 10.5 inch
  • Packing 529 x 124 x 451 mm 20.8 x 4.9 x 17.8 inch

Weight

  • Net 4.2 kg / 9.2 lb
  • Gross 6.2 kg / 13.6 lb
