8500-ER This item is no longer available.

Complete 8 Channel Analog DAQ (Data Acquisition) System (Extended range -40 to +85 Degrees C), Includes 12-Bit, 8SE/4DI Channel Serial Input Module, Screw Terminals, Power Supply, Serial Cable and WINview CP Plus 2012: Ready-to-Run Collection, Graphing...

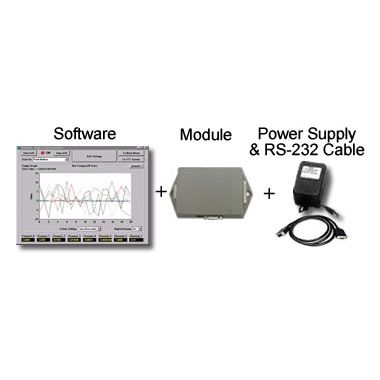

main product photo

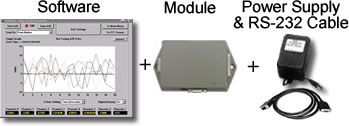

  • Complete RS-232 Data Acquisition System Includes:
    • ADC-1 Data Acquisition Module
    • RS-232 Cable
    • Power Supply
    • WINview CP Plus 2012 Ready-to-Run Software - Supports Analog Inputs Only
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview CP 2012 is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
  • 8 Channel 12bit A/D converter
  • +/-5VDC Voltage or 4-20mA Current input
  • 16 digital I/O lines
  • 16 bit pulse counter input/output
  • Diagnostic LED
  • Simple ASCII commands
  • Supports 9600-115.2 KBps
  • Small size (approx. 3"x4")
  • Detachable screw terminal blocks optional - see below
Related Products

Temperature Range 0°C to +85°C
Software Interface Tools for Visual Basic, Visual C++, and Test Point.
Analog Input Channels 8 single ended or 4 differential Software selectable
A/D Converter Linear Tech LTC1296 12 Bit
Analog Inputs -5V to +5V Unipolar and bipolar. Software selectable.
Maximum Sampling Speed of Hardware  (Analog Inputs)
WINview CP 2012 Software limited to 10 samples per second		 115,200 baud 777 samples per second
57,600 baud 412 samples per second
19,200 baud 143 samples per second
9,600 baud 72 samples per second
Linearity Error LTC1296BCN ± 0.012% (± 0.5 LSB)
Gain Error ± 0.012% (± 0.5 LSB)
Offset Error ± 0.17%
Temperature Drift 100 ppm/ºC ( max. )
Bandwidth 1515 SPS maximum, continuous stream mode 115,200 baud, single channel
Digital I/O 16 digital I/O lines (two 8 bit ports) I/O line data direction is software selectable
Digital I/O Current I/O line source/sink 25 ma Total current 200 ma for the 8 bit port
Digital I/O Voltage Levels Input Off (0) = 0V - 0.8V Input On (1) = 2.0V - 5.0V Output Off (0) = 0.6V max. Output On (1) = 4.3V min.
PWM Output PWM Freq.: 1.8KHz - 430KHz PWM duty: 0%-100%
Pulse Counter Input 1 MHz max. input rate 32 bit counter capture Counter increments on high-low transition
Communications RS232 (8 data bits, no parity, 1 stop bit) 50 feet maximum distance
Baud Rate 9600-115.2K BPS DIP switch selectable
Command Protocol Simple ASCII commands. See the User's Manual
Operating Power 7.5 Vdc to 15.0 Vdc, 50 ma nominal, 450 ma max.
Enclosure 3" x 4" ABS plastic box
