8513

Complete RS-232 Single Channel 16-bit RTD DAQ System - Includes WINview CP Plus 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Compatible with Windows XP SP3/Vista/7 32-bit & 64-bit operating systems.

  • Complete RS-232 Data Acquisition System
  • 1 RTD input channel
  • Accepts Pt and Ni RTD Types
  • 16-Bit A/D Converter
  • Expandable with optional 8000 Series Modules
  • Provides Amplification and Current Source

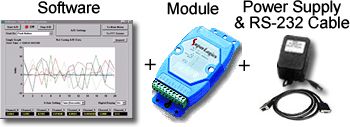

  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

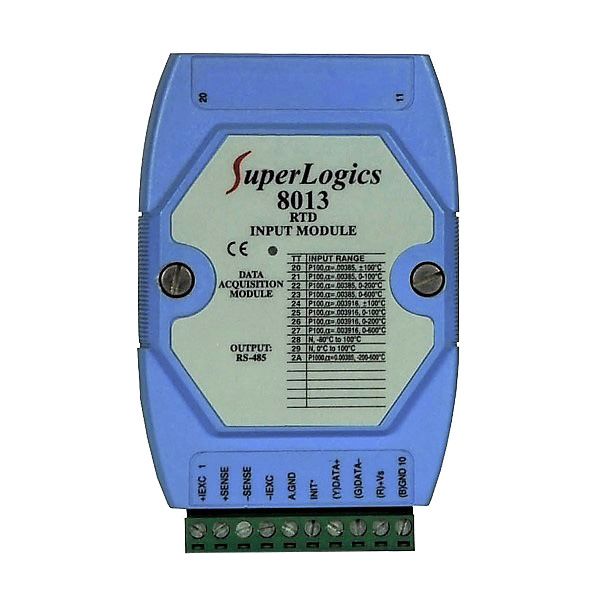

    • 8013 (prewired)
    • RS-232 cable
    • Power Supply
  • WINview CP Plus 2012 Ready-to-Run Software - Supports Analog Inputs Only
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview CP 2012 is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Input
    • Input Channels: 1
    • Input Type: RTD
    • Wire Connection: 2/3/4 wire
    • RTD Type: pt100 a = 0.00385, pt100 a = 0.003916, pt1000 a = 0.00385
    • Resolution: 16-bit
    • Maximum Hardware Sampling Rate: 10 Samples/Second
    • Accuracy: +/- 0.05%
    • -3db BandWidth: 5.24Hz
    • Zero Drift: +/- 0.5uV/°C
    • Span Drift: +/- 25uV/°C
    • common Mode Rejection: 150dB min.
    • Normal Mode Rejection: 100dB
    • Open Wire Detection: Yes
    • Overvoltage Protection: +/-5V (P-P)
    • Intra-Module Isolation, Field to Logic: 3000VDC
  • Interface:
    • RS-232
    • Format: N, 8, 1
    • Baud Rate: 1200 ~ 115200bps
  • Power:
    • Input Voltage Range: +10 to +30VDC
    • Power Consumption: 0.7W
  • Environment:
    • Operating Temperature: -25 to 75°C
    • Storage Temperature: -40 to 85°C
    • Humidity: 5 to 95% RH, non-condensing

RTD Temperature Range:

Type Code RTD Type Temperature Range (°C)
20 Platinum 100, a = 0.00385 -100 ~ 100
21 Platinum 100, a = 0.00385 0 ~ 100
22 Platinum 100, a = 0.00385 0 ~ 200
23 Platinum 100, a = 0.00385 0 ~ 600
24 Platinum 100, a = 0.003916 -100 ~ 100
25 Platinum 100, a = 0.003916 0 ~ 100
26 Platinum 100, a = 0.003916 0 ~ 200
27 Platinum 100, a = 0.003916 0 ~ 600
28 Nickel 120 -80 ~ 100
29 Nickel 120 0 ~ 100
2A Platinum 1000, a = 0.00385 -200 ~ 600
2E PT 100, a = 0.00385 -200 ~ 200
2F PT 100, a = 0.003916 -200 ~ 200
80 PT 100, a = 0.00385 -200 ~ 600
81 PT 100, a = 0.003916 -200 ~ 600

Software Specifications:

  • Hardware Requirements:
    • One 8000 Series Analog Input Module Connected via USB or RS232
    • 512MB RAM
    • 6MB Hard Disk Space (For WINview CP 2012 Only - Additional Space Required for Data Storage and/or .NET Framework)
  • Software Requirements
    • Windows XP (Service Pack 3), Windows Vista or Windows 7 (32-bit or 64-bit)
    • Microsoft .NET Framework Version 4.0 or Higher
    • 1024 x 768 Resolution or Higher
    • Requires Administrator User Privileges
  • General Software Specifications:
    • Maximum Number of Inputs:
      • Number and Type of Channels Determined by Module Used
    • Supported Signal Types:
      • All Analog Input Types:
        • Volts, mV, mA, Thermocouple, RTD, Strain Gauge, etc.
    • Ease of Use:
      • Very Easy, No Learning Curve, No Programming, No Manual Needed
    • Speed of Acquisition:
      • Maximum: 10 Hz (May be Limited by Hardware)
      • Minimum: None
    • Duration of Acquisition:
      • Finite (Specify Number of Points to Collect)
      • Continuous (Collects Until Stopped by User)
    • Data Storage:
      • Stream Data to Disk as ASCII Text (Tab Delimited)
      • Stream Data to Disk as ASCII Text with Time/Date Stamp Options (Tab Delimited)
      • Easily Import into Microsoft Excel
    • Settings Retrieval
      • All User Settings May Be Saved to a File for Later Use
      • Selectable Auto-Load of Specified Settings File
    • Math Formulas Per Channel:
      • Yes
      • Supports the Following Math Functions: +, -, *, /, ( ), sin, cos, tan, ^, ln, sqr, exp
    • Real-Time Display:
      • Yes, Selectable Graphing Options
  • Graph Specifications:
    • Display:
      • Time vs. Y
      • Multiple Channels per Graph
      • Digital Readout of Each Channel
      • Strip-Chart Mode
      • User Selectable Graph Type (Line, Bar, Pie, etc.)
    • X-Axis:
      • Samples, Seconds, Minutes, Hours, Days
      • Supports Auto-Scaling
    • Y-Axis:
      • User-Defineable
      • Supports Auto-Scaling
    • Graph Functions:
      • Print Graph Image
      • Save Graph Image
      • Zoom Graph Image
      • Copy Graph Image to Clipboard
    • Trigger Type:
      • Software Push Button
