8514D

Complete RS232 Single Channel Volts/mV/mA 16-bit Analog Input DAQ System with LED Display: Accepts ± 150mV, ±500mV, ± 1V, ± 5V, ± 10V and ± 20mA - Includes WINview CP Plus 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Compatible wit...

Complete RS232 Single Channel Volts/mV/mA 16-bit Analog Input DAQ System with LED Display: Accepts ± 150mV, ±500mV, ± 1V, ± 5V, ± 10V and ± 20mA - Includes WINview CP Plus 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Compatible wit...
  • 8514D
  • 8514D
  • Complete RS-232 Data Acquisition System
  • 1 Analog Input Channel
  • Accepts ±150mV, ±500mV, ±1V, ±5V, ±10V & ±20mA inputs
  • 16-Bit A/D Converter
  • Expandable with Optional 8000 Modules
  • 4-Digit LED Display
  • 1 Channel Digital Input (Not Supported by WINview CP)
  • 2 Open Collector Digital Output Channels (Not Supported by WINview CP)

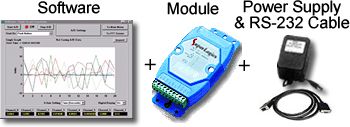

  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

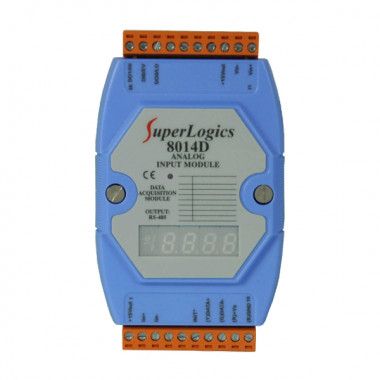

    • 8014D (prewired)
    • RS-232 cable
    • Power Supply
    • WINview CP Plus 2012 Ready-to-Run Software - Supports Analog Inputs Only
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview CP 2012 is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
Related Products
Technical Specifications

Hardware Specifications:

  • Analog Input:
    • Photo-isolation: 3750 Vrms
    • Channels: 1
    • Input type: V, mV, mA
    • Input range: ±150mV, ±500mV, ±1V, ±5V, ±10V and ±20mA
    • Max. Sampling rate of Module: 10 Samples/Second
    • Bandwidth: 4 Hz
    • Accuracy: ± 0.05% or better
    • Zero drift: ± 20uV/°C
    • Span drift: ± 25ppm/°C
    • Isolated loop power: +15V DC @ 30mA
    • CMR @ 50/60 Hz: 86 dB
    • NMR @ 50/60 Hz: 100 dB
    • Line input converter
    • Over voltage protection: ± 10V
  • Digital Input:
    • Channels: 1
    • Logic 0: 0 to 1V
    • Logic 1: 3.5V to 30V
    • Input frequency: 50Hz max.
    • Input pulse width: 1ms min.
  • Digital Output:
    • Channels: 2
    • Open Collector to 30V, 30mA max. load
    • Power dissipation: 300mW
    • Display LED: 4 seven-segment LED
  • Interface:
    • RS-232
    • Format: N, 8, 1
    • Baud Rate: 1200 ~ 115200bps
  • Power:
    • Input Voltage Range: +10 to +30VDC
    • Power Consumption: 1.9W
  • Environment:
    • Operating Temperature: -25 to 75°C
    • Storage Temperature: -40 to 85°C
    • Humidity: 5 to 95% RH, non-condensing

Software Specifications:

  • Hardware Requirements:
    • One 8000 Series Analog Input Module Connected via USB or RS232
    • 512MB RAM
    • 6MB Hard Disk Space (For WINview CP 2012 Only - Additional Space Required for Data Storage and/or .NET Framework)
  • Software Requirements
    • Windows XP (Service Pack 3), Windows Vista or Windows 7 (32-bit or 64-bit)
    • Microsoft .NET Framework Version 4.0 or Higher
    • 1024 x 768 Resolution or Higher
    • Requires Administrator User Privileges
  • General Software Specifications:
    • Maximum Number of Inputs:
      • Number and Type of Channels Determined by Module Used
    • Supported Signal Types:
      • All Analog Input Types:
        • Volts, mV, mA, Thermocouple, RTD, Strain Gauge, etc.
    • Ease of Use:
      • Very Easy, No Learning Curve, No Programming, No Manual Needed
    • Speed of Acquisition:
      • Maximum: 10 Hz (May be Limited by Hardware)
      • Minimum: None
    • Duration of Acquisition:
      • Finite (Specify Number of Points to Collect)
      • Continuous (Collects Until Stopped by User)
    • Data Storage:
      • Stream Data to Disk as ASCII Text (Tab Delimited)
      • Stream Data to Disk as ASCII Text with Time/Date Stamp Options (Tab Delimited)
      • Easily Import into Microsoft Excel
    • Settings Retrieval
      • All User Settings May Be Saved to a File for Later Use
      • Selectable Auto-Load of Specified Settings File
    • Math Formulas Per Channel:
      • Yes
      • Supports the Following Math Functions: +, -, *, /, ( ), sin, cos, tan, ^, ln, sqr, exp
    • Real-Time Display:
      • Yes, Selectable Graphing Options
  • Graph Specifications:
    • Display:
      • Time vs. Y
      • Multiple Channels per Graph
      • Digital Readout of Each Channel
      • Strip-Chart Mode
      • User Selectable Graph Type (Line, Bar, Pie, etc.)
    • X-Axis:
      • Samples, Seconds, Minutes, Hours, Days
      • Supports Auto-Scaling
    • Y-Axis:
      • User-Defineable
      • Supports Auto-Scaling
    • Graph Functions:
      • Print Graph Image
      • Save Graph Image
      • Zoom Graph Image
      • Copy Graph Image to Clipboard
    • Trigger Type:
      • Software Push Button
