CP8213

Complete RS-232 Single Channel 16-bit RTD DAQ System - Includes 30-day trial of WINview CP 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Compatible with Windows XP SP3/Vista/7 32-bit & 64-bit operating systems.

Complete RS-232 Single Channel 16-bit RTD DAQ System - Includes 30-day trial of WINview CP 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Compatible with Windows XP SP3/Vista/7 32-bit & 64-bit operating systems.
  • CP8213
  • CP8213
  • Complete RS-232 Data Acquisition System
  • 1 RTD input channel
  • Accepts Pt and Ni RTD Types
  • 16-Bit A/D Converter
  • Expandable with optional 8000 Series Modules
  • Provides Amplification and Current Source
  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

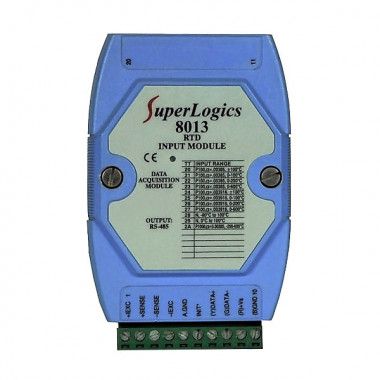

    • 8013 (prewired)
    • RS-232 cable
    • Power Supply
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
Related Products
Technical Specifications

Hardware Specifications:

  • Analog Input
    • Input Channels: 1
    • Input Type: RTD
    • Wire Connection: 2/3/4 wire
    • RTD Type: pt100 a = 0.00385, pt100 a = 0.003916, pt1000 a = 0.00385
    • Resolution: 16-bit
    • Maximum Hardware Sampling Rate: 10 Samples/Second
    • Accuracy: +/- 0.05%
    • -3db BandWidth: 5.24Hz
    • Zero Drift: +/- 0.5uV/°C
    • Span Drift: +/- 25uV/°C
    • common Mode Rejection: 150dB min.
    • Normal Mode Rejection: 100dB
    • Open Wire Detection: Yes
    • Overvoltage Protection: +/-5V (P-P)
    • Intra-Module Isolation, Field to Logic: 3000VDC
  • Interface:
    • RS-232
    • Format: N, 8, 1
    • Baud Rate: 1200 ~ 115200bps
  • Power:
    • Input Voltage Range: +10 to +30VDC
    • Power Consumption: 0.7W
  • Environment:
    • Operating Temperature: -25 to 75°C
    • Storage Temperature: -40 to 85°C
    • Humidity: 5 to 95% RH, non-condensing

RTD Temperature Range:

Type Code RTD Type Temperature Range (°C)
20 Platinum 100, a = 0.00385 -100 ~ 100
21 Platinum 100, a = 0.00385 0 ~ 100
22 Platinum 100, a = 0.00385 0 ~ 200
23 Platinum 100, a = 0.00385 0 ~ 600
24 Platinum 100, a = 0.003916 -100 ~ 100
25 Platinum 100, a = 0.003916 0 ~ 100
26 Platinum 100, a = 0.003916 0 ~ 200
27 Platinum 100, a = 0.003916 0 ~ 600
28 Nickel 120 -80 ~ 100
29 Nickel 120 0 ~ 100
2A Platinum 1000, a = 0.00385 -200 ~ 600
2E PT 100, a = 0.00385 -200 ~ 200
2F PT 100, a = 0.003916 -200 ~ 200
80 PT 100, a = 0.00385 -200 ~ 600
81 PT 100, a = 0.003916 -200 ~ 600
