CP8214D

Complete RS-232 Single Channel Volts/mV/mA 16-bit Analog Input DAQ System with LED Display: Accepts ± 150mV, ±500mV, ± 1V, ± 5V, ± 10V and ± 20mA - Includes 30-day trial of WINview CP 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Co...

Complete RS-232 Single Channel Volts/mV/mA 16-bit Analog Input DAQ System with LED Display: Accepts ± 150mV, ±500mV, ± 1V, ± 5V, ± 10V and ± 20mA - Includes 30-day trial of WINview CP 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Co...
  • CP8214D
  • Complete RS-232 Data Acquisition System
  • 1 Analog Input Channel
  • Accepts ±150mV, ±500mV, ±1V, ±5V, ±10V & ±20mA inputs
  • 16-Bit A/D Converter
  • Expandable with Optional 8000 Modules
  • 4-Digit LED Display
  • 1 Channel Digital Input (Not Supported by WINview CP)
  • 2 Open Collector Digital Output Channels (Not Supported by WINview CP)
  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

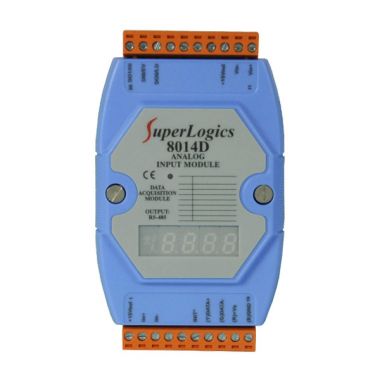

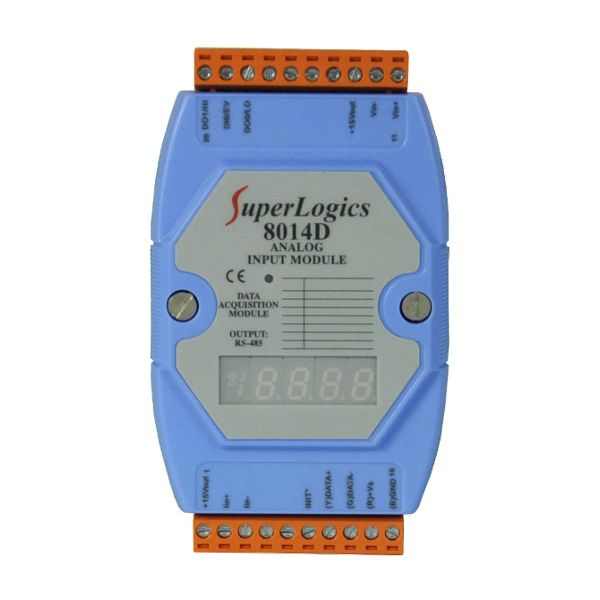

    • 8014D (prewired)
    • RS-232 cable
    • Power Supply
    • 30 day trial of WINview CP 2012 Ready-to-Run Software
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
Related Products
Technical Specifications

Hardware Specifications:

  • Analog Input:
    • Photo-isolation: 3750 Vrms
    • Channels: 1
    • Input type: V, mV, mA
    • Input range: ±150mV, ±500mV, ±1V, ±5V, ±10V and ±20mA
    • Max. Sampling rate of Module: 10 Samples/Second
    • Bandwidth: 4 Hz
    • Accuracy: ± 0.05% or better
    • Zero drift: ± 20uV/°C
    • Span drift: ± 25ppm/°C
    • Isolated loop power: +15V DC @ 30mA
    • CMR @ 50/60 Hz: 86 dB
    • NMR @ 50/60 Hz: 100 dB
    • Line input converter
    • Over voltage protection: ± 10V
  • Digital Input:
    • Channels: 1
    • Logic 0: 0 to 1V
    • Logic 1: 3.5V to 30V
    • Input frequency: 50Hz max.
    • Input pulse width: 1ms min.
  • Digital Output:
    • Channels: 2
    • Open Collector to 30V, 30mA max. load
    • Power dissipation: 300mW
    • Display LED: 4 seven-segment LED
  • Interface:
    • RS-232
    • Format: N, 8, 1
    • Baud Rate: 1200 ~ 115200bps
  • Power:
    • Input Voltage Range: +10 to +30VDC
    • Power Consumption: 1.9W
  • Environment:
    • Operating Temperature: -25 to 75°C
    • Storage Temperature: -40 to 85°C
    • Humidity: 5 to 95% RH, non-condensing
