CP8217F

Complete RS-232 8 Channel Volts/mV/mA High Speed Capable (up to 60 Samples/Second*)16-bit (Normal Mode)/12-bit (Fast Mode) Analog Input DAQ System: Accepts ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA - Includes 30-day trial of WINview CP 2012: Ready-to-Run C...

  • Complete RS-232 Data Acquisition System
  • 8 Differential Analog Input Channels Accept mV, V and mA Inputs
  • Accepts ±150mV, ±500mV, ±1V, ±5V, ±10V and ±20mA Inputs
  • 16-Bit Resolution (in Normal Mode, 12-bit in Fast Mode) A/D Converter
  • Supports Fast Sampling Mode of up to 60 Samples/Second*
  • Expandable with Optional 8000 Series Modules
  • Amplification for Low-Level voltages
  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

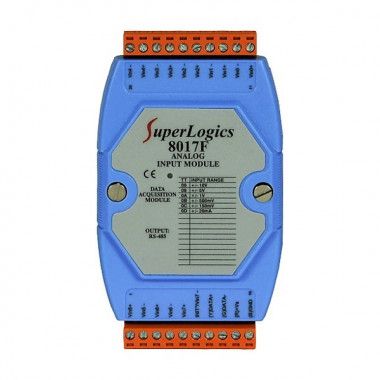

    • 8017F (prewired)
    • RS-232 Cable
    • Power Supply
    • 30 day trial of WINview CP 2012 Ready-to-Run Software
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Input:
    • Input Channels: 8 differential or 6 differential and 2 single- ended by jumper select
    • Input type : +/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V +/-20mA(with external ohms resistor)
    • Resolution: 16 bit(Normal Mode) / 12 bit(Fast Mode)
    • Sampling Rate of Module: 10 Samples/1 Second (Normal Mode) 60 Samples/1 Second (Fast Mode)
    • Accuracy: ±0.1% (Normal Mode) ±0.5%(Fast Mode)
    • Zero Drift: ±20uV°C
    • Span Drift: ±25ppm/°C
    • Common Mode Rejection @50/60Hz: 86dB min
    • Normal Mode Rejection @ 50/60Hz: 100dB
    • Input Impedance: 20M Ohms
    • Over Voltage Protection: ±35V (P-P)
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.3W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 176°F (-40 to 80°C)
    • Humidity: 5 to 95% RH, non-condensing
