CP8217Z

Complete RS-232 High Channel (10 Differential or 20 Single-Ended), High Speed Capable (up to 60 Samples/Second*) Volt/mV/mA Analog Input DAQ System: Accepts +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA ,0~20mA, 4~20mA - Includes 30-day trial of WINview CP ...

  • Complete RS-232 Data Acquisition System
  • 20SE/10DI mV,V or mA inputs - Expandable
  • Accepts +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA,0~20mA, 4~20mA (Jumper Selectable)
  • Supports Fast Sampling Mode of up to 60 Samples/Second*
  • 16-Bit Resolution (in Normal Mode, 12-bit in Fast Mode) A/D Converter
  • Over Voltage Protection:
    • Differential: 240 Vrms
    • Single-Ended: 150 Vrms
  • 4KV ESD Protection
  • Expandable with Optional 8000 Series Modules
  • Intra Module Isolation, Field to Logics: 3000 VDC
  • Amplification for Low-Level voltages
  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

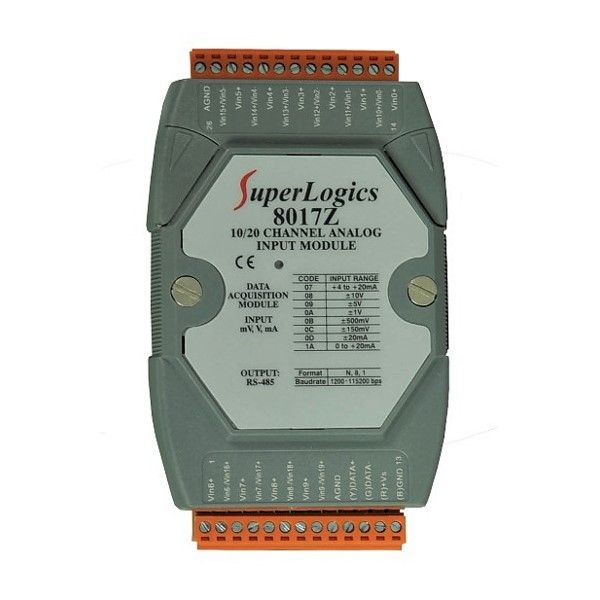

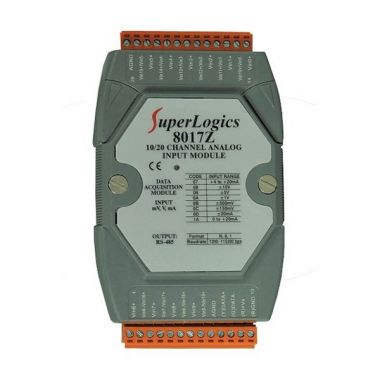

    • 8017Z (prewired)
    • RS-232 Cable
    • Power Supply
    • 30 day trial of WINview CP 2012 Ready-to-Run Software
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Input:
    • Input Channels: 10 differential or 20 single-ended (Voltage Inputs Only), software selectable
    • Input type : +/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA,0~20mA, 4~20mA (jumper selectable)
    • Resolution: 16 bit(Normal Mode) / 12 bit(Fast Mode)
    • Sampling Rate of Module: 10 Samples/1 Second (Normal Mode) 60 Samples/1 Second (Fast Mode)
    • Accuracy: ±0.1% (Normal Mode) ±0.5%(Fast Mode)
    • Bandwidth: 15.7Hz (Normal Mode) 78.7Hz (Fast Mode)
    • Zero Drift: ±20uV°C
    • Span Drift: ±25ppm/°C
    • Common Mode Rejection @50/60Hz: 86dB min
    • Normal Mode Rejection @ 50/60Hz: 100dB
    • Input Impedance: Voltage: 2M Ohms(Differential), 1M Ohms(Single-ended), Current: 125 Ohms
    • Over Voltage Protection: Differential: 240 Vrms, Single-ended: 150Vrms
    • 4KV ESD Protection: Yes - 8KV for random point
    • EFT Protection: 4KV to Power, 1KV to RS-485
    • Individual Channel Configuration: Yes
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 2.0W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
