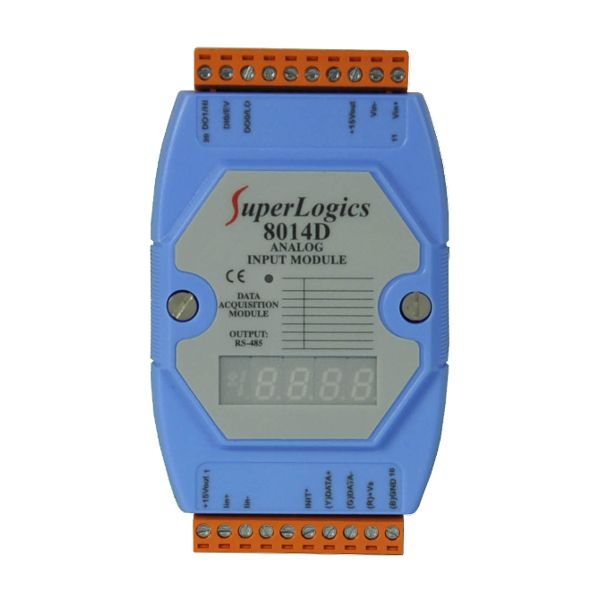

8014D

1 Channel Analog Input with Display

  • 1 channel Analog input (expandable)
  • 16-Bit A/D Converter
  • Accepts Volts, mV and mA Inputs
  • 4 digit LED display
  • 1 Channel Digital Input
  • 2 Channels Open Collector Digital Output
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Input:
    • Input Channels: 1
    • Input Type: +/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V and +/-20mA
    • Resolution: 16-bit
    • Sampling Rate: 10 samples/1 second
    • Accuracy: +/- 0.05%
    • -BandWidth: 5.24Hz
    • Zero Drift: +/- 20uV/°C
    • Span Drift: +/- 25ppm/°C
    • Add Input Impedance:
      • Voltage Input: 30K OHms
      • Current Input: 125 Ohms
    • Isolated Loop Power: +15Vdc @ 30mA
    • Common Mode Rejection: 86dB
    • Normal Mode Rejection: 100dB
    • Overvoltage Protection: +/-10V)
    • Intra-Module Isolation, Field to Logic: 3000VDC
  • Digital Input:
    • Channels: 1
    • Logic Level 0: +1V max
    • Logic Level 1: 3.5V to 30V
    • Input Frequency: 50Hz max
    • Input Pulse Width: 1mS min.
  • Digital Output:
    • Channels: 2
    • Output Type: Sink, Open Collector to 30V
    • Output Load: 30mA
    • Power Dissipation: 300 mW
  • Interface:
    • RS485
    • Format: N, 8, 1
    • Baud Rate: 1200 ~ 115200bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • Power:
    • Input Voltage Range: +10 to +30VDC
    • Power Consumption: 1.9W
  • Environment:
    • Operating Temperature: -25 to 75°C
    • Storage Temperature: -40 to 85°C
    • Humidity: 5 to 95% RH, non-condensing
