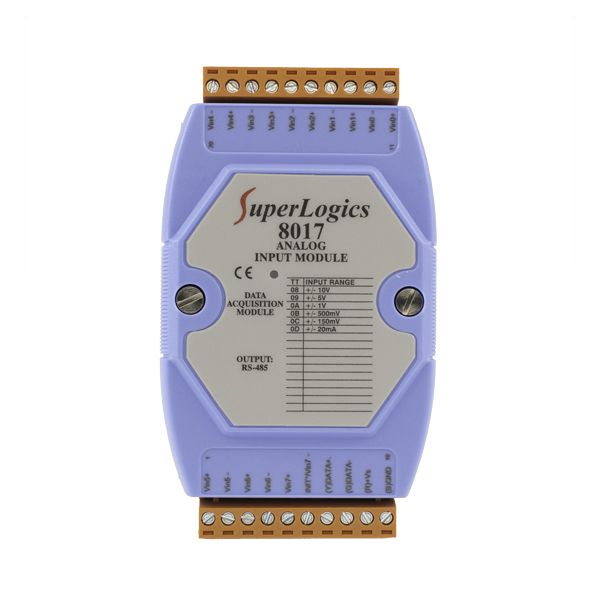

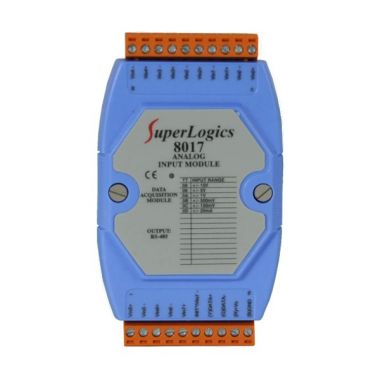

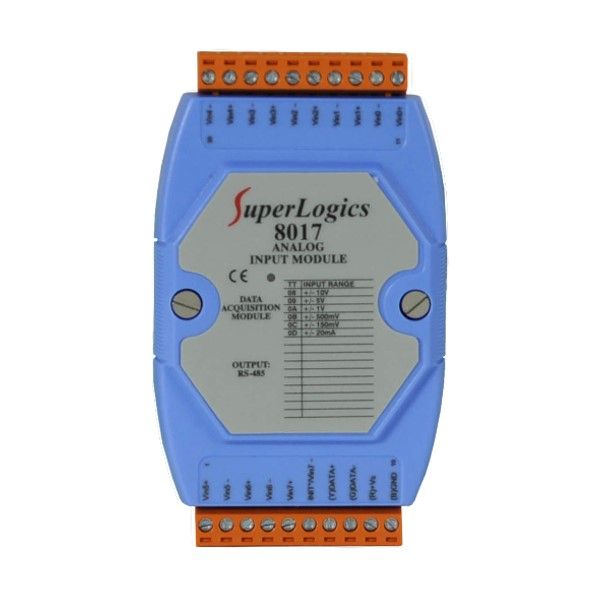

8017

8 Channel Analog Input Module, 16-Bit A/D Converter, Input Range: ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA

  • 8 Differential Analog Input Channels (expandable)
  • 16-Bit A/D Converter
  • Accepts V, mV and mA inputs
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Input:
    • Input Channels: 8 differential or 6 differential and 2 single- ended by jumper select
    • Input type :+/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA (requires external 125 ohm resistor)
    • Resolution: 16 bit
    • Sampling Rate of Module: 10 Samples/1 Second
    • Accuracy: ±0.1%
    • Bandwidth: 15.7Hz
    • Zero Drift: ±20uV°C
    • Span Drift: ±25ppm/°C
    • Common Mode Rejection @50/60Hz: 86dB min
    • Normal Mode Rejection @ 50/60Hz: 100dB
    • Input Impedance: 20M Ohms
    • Over Voltage Protection: +/- 35V (P-P)
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.3W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
