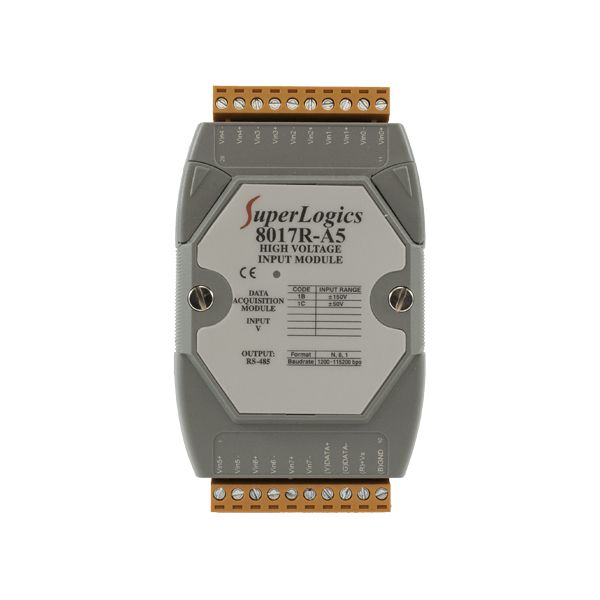

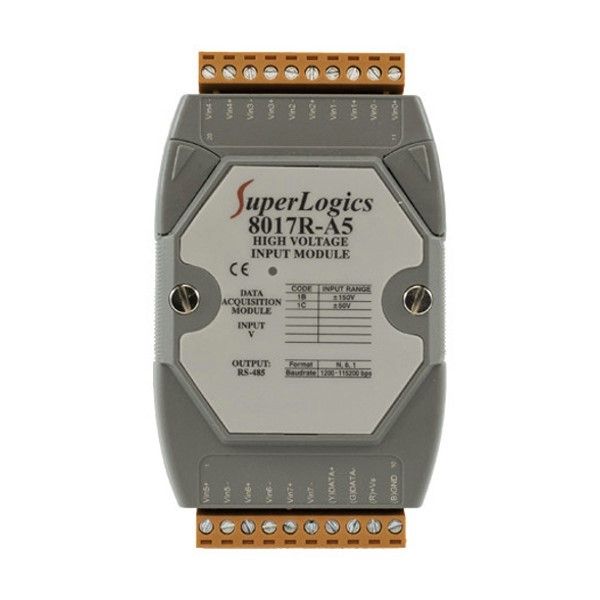

8017R-A5

8 Channel Analog Input Module, 16-Bit A/D Converter, Input Range: +/-50V, +/-150V DC - Resolution 16-bit(Noraml Mode) / 12-bit(Fast Mode) ..Sampling Rate 10Samples/ Second (Normal Mode) / 50 Samples (Fast Mode); Over Voltage Protection: 200 V DC ; 4KV...

8 Channel Analog Input Module, 16-Bit A/D Converter, Input Range: +/-50V, +/-150V DC - Resolution 16-bit(Noraml Mode) / 12-bit(Fast Mode) ..Sampling Rate  10Samples/ Second (Normal Mode) / 50 Samples (Fast Mode); Over Voltage Protection: 200 V DC ; 4KV...
  • 8017R-A5
  • 8 High Voltage Inputs (+/- 50 VDC, +/- 150 VDC) - Expandable
  • 50 Samples/Second Max Sampling Rate of Module in Fast Mode (10 Samples/Second in Normal Mode)
  • 16-bit A/D Converter (Normal Mode); 12-bit A/D Converter (Fast Mode)
  • 4 KV ESD Protection
  • Intra-Module Isolation, Field to Logics: 3000 VDC
  • Accepts Voltage Inputs Directly
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
Related Products
Technical Specifications

Hardware Specifications:

  • Analog Input:
    • Input Channels: 8
    • Input type : +/-50V, +/-150V DC
    • Resolution: 16 bit(Normal Mode) / 12 bit(Fast Mode)
    • Sampling Rate of Module: 10 Samples/1 Second (Normal Mode) 50 Samples/1 Second (Fast Mode)
    • Accuracy: ±0.1% (Normal Mode) ±0.25%(Fast Mode)
    • Bandwidth: 15.7Hz (Normal Mode) 78.7Hz (Fast Mode)
    • Zero Drift: ±20uV°C
    • Span Drift: ±25ppm/°C
    • Common Mode Rejection @50/60Hz: 86dB min
    • Normal Mode Rejection @ 50/60Hz: 100dB
    • Input Impedance: 290k Ohms
    • Over Voltage Protection: 200V DC
    • 4KV ESD Protection: Yes
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.7W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
