8021

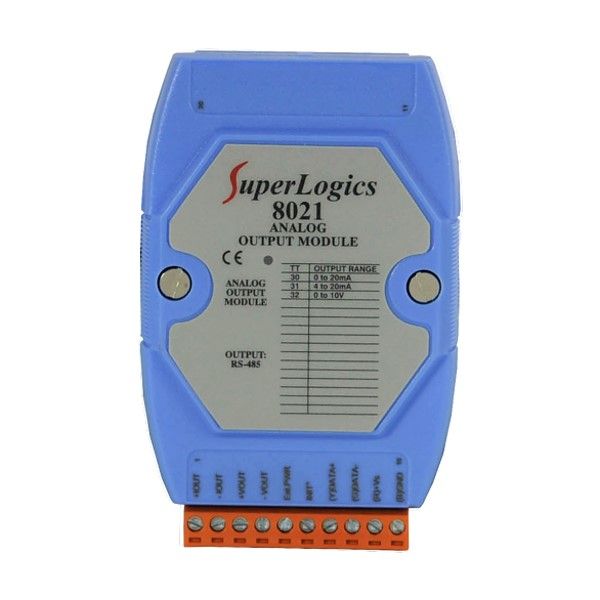

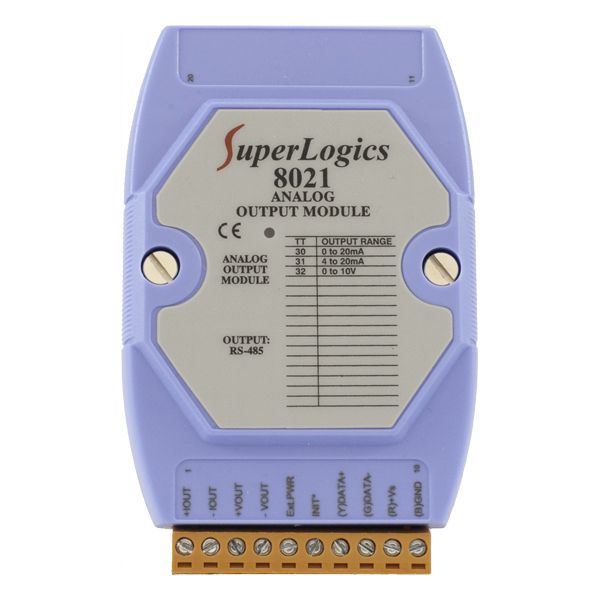

1 Channel Analog Output Module

1 Channel Analog Output Module
  • 8021
  • 1 Channel Analog Output (expandable)
  • 12-Bit D/A Converter
  • Outputs 0-10VDC, 0-20mA or 4-20mA
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
Related Products
Technical Specifications

Hardware Specifications:

  • Analog Input:
    • Input Channels: 1
    • Input type : 0~20mA , 4~20mA and 0~10V
    • Resolution: 12 bit
    • Accuracy: ±0.1%
    • Read Back Accuracy: +/-1%
    • Zero Drift:
      • Current Output: +/-0.2uA/°C
      • Voltage Output: +/-30uV/°C
    • DA Output Response Time: 10ms per channel
    • Span Temperature Coefficient: +/-25ppm/ °C
    • Programmable Output Slope
      • 0.125 to 1024 mA/second
      • 0.0625 to 512 V/second
    • Current Load Resistance
      • Internal Power : 500ohms
      • External 24V : 1050ohms
    • Photo-Isolation: 3750 Vrms
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.8W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
