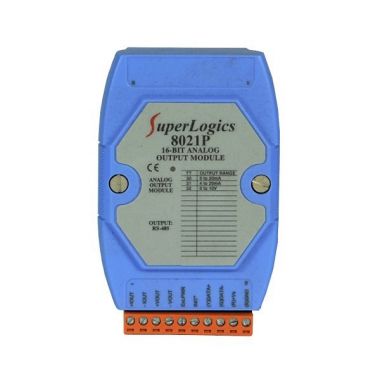

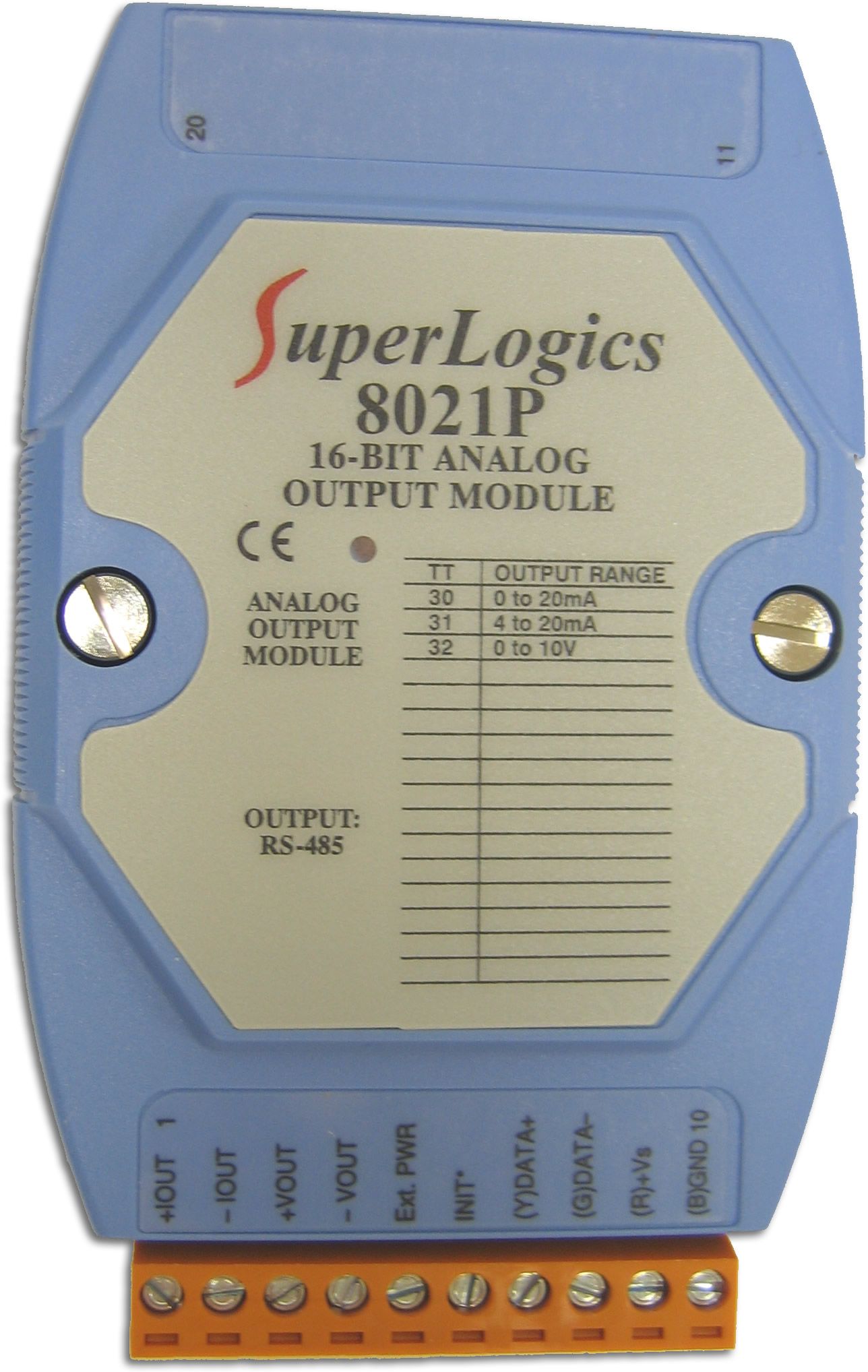

8021P

1 Channel 16-Bit Analog Output Module

  • 1 Channel Analog Output (expandable)
  • 16-Bit D/A Converter
  • Outputs 0-10VDC, 0-20mA or 4-20mA
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Input:
    • Input Channels: 1
    • Input type : 0~20mA, 4~20mA and 0~10V
    • Resolution: 16 bit
    • Accuracy: ±0.02%
    • Read Back Accuracy: +/-1%
    • Zero Drift:
      • Current Output: +/-0.2uA/°C
      • Voltage Output: +/-10uV/°C
    • DA Output Response Time: 10ms per channel
    • Span Temperature Coefficient: +/-5ppm/ °C
    • Programmable Output Slope
      • 0.125 to 1024 mA/second
      • 0.0625 to 512 V/second
    • Current Load Resistance
      • Internal Power : 500ohms
      • External 24V : 1050ohms
    • Photo-Isolation: 3750 Vrms
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.8W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
