8024

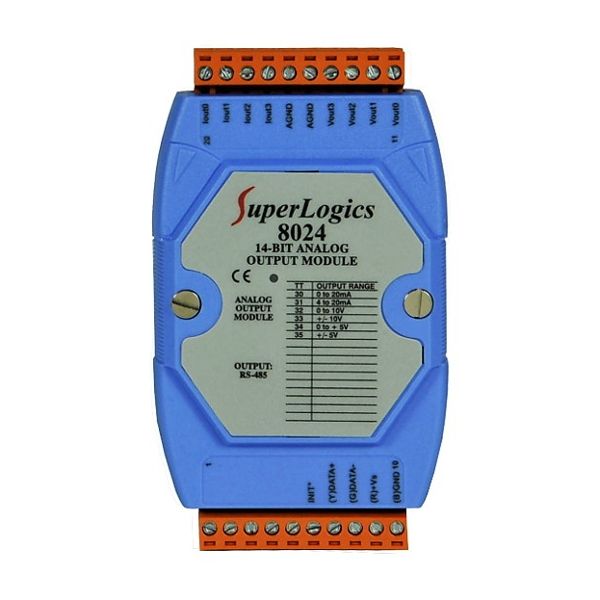

4 Channel 14-Bit Analog Output Module

  • 4 Channels Analog Output (expandable)
  • 14-Bit D/A Converter
  • Outputs ±10VDC, ±5VDC, 0-10VDC, 0-5VDC, 0-20mA or 4-20mA
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Output:
    • Output Channels: 4
    • Output Type: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 5V, +/-5V, 0 ~ 10V, +/-10V
    • Resolution: 14 bit
    • Accuracy: ±0.01%
    • Zero Drift:
      • Current Output: +/-0.2uA/°C
      • Voltage Output: +/-30uV/°C
    • Span Temperature Coefficient: +/-20 ppm/°C
    • Programmable Output Slope
      • 0.125 to 1024 mA/second
      • 0.0625 to 512 V/second
    • Voltage Output Capability: 10V, 10 mA maximum
    • Current Load Resistor: External +24V power: 1050 O
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:
      • Typical: 1.6W
      • Maximum: 2.4W (4 Channels output 10 mA at 10V)
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
