CP8280

2 Channel Counter/Frequency Measurement Device

2 Channel Counter/Frequency Measurement Device
  • CP8280
  • Complete Serial (RS-232) Hardware System
  • 2 independent 32-bit counters (expandable)
  • 100kHz max input frequency
  • 2 digital output channels
  • 5000 Vrms isolation voltage

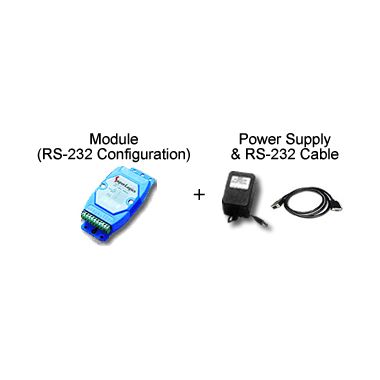

  • Includes:
    • 8520 for direct RS-232
    • 8080 (prewired)
    • RS-232 Cable
    • Power Supply
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
Related Products
Technical Specifications

Hardware Specifications:

  • Counter Input
    • Channels: 2 independent 32-bit counters, counter 0&1
    • Input Type: Isolated or Non-isolated
    • Input Level for Isolation and Non-isolation
      • Logic Level 0: +1V max
      • Logic Level 1: +3.5 to 30V
    • Isolation Voltage: 3750Vrms
    • Non-Isolated Input Level (Programmable):
      • Logic level 0: 0 to +5V (default= 0.8V)
      • Logic level 1: 0 to +5V (default=2.4V)
    • Maximum Count: 32bit (4,294,967,295)
    • Programmable Digital Noise Filter : 2us to 65ms
    • Alarming: alarm on counter 0 or counter 0 & 1, programmable
    • Counter Preset Value: programmable
  • Frequency Measurement
    • Input Frequency: 1Hz to 100KHz max
    • Gate Time: 1.0 or 0.1sec, programmable
  • Digital Output:
    • Channels: 2
    • Output Type: Sink, Open-Collector
    • Output Voltage: 30V max
    • Output Current: 30mA max
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:2.0W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
