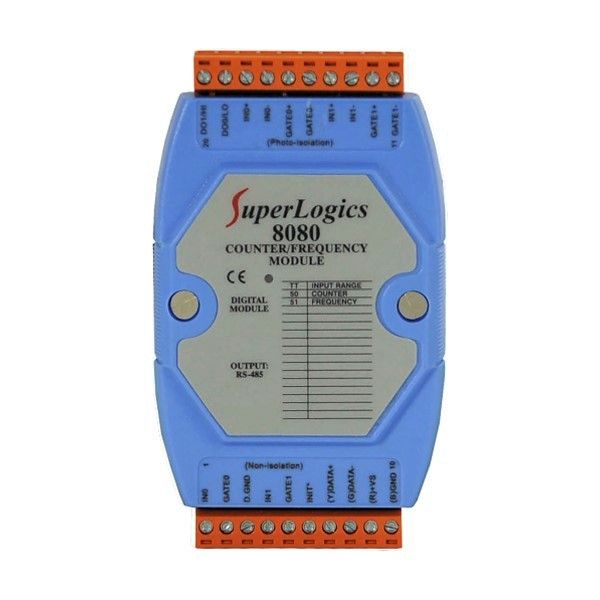

8080

2 Channel Counter/Frequency Measurement Module

  • 2 independent 32-bit counters
  • 100kHz max input frequency
  • 2 digital output channels
  • 5000 Vrms isolation voltage
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Counter Input
    • Channels: 2 independent 32-bit counters, counter 0&1
    • Input Type: Isolated or Non-isolated
    • Input Level for Isolation and Non-isolation
      • Logic Level 0: +1V max
      • Logic Level 1: +3.5 to 30V
    • Isolation Voltage: 3750Vrms
    • Non-Isolated Input Level (Programmable):
      • Logic level 0: 0 to +5V (default= 0.8V)
      • Logic level 1: 0 to +5V (default=2.4V)
    • Maximum Count: 32bit (4,294,967,295)
    • Programmable Digital Noise Filter : 2us to 65ms
    • Alarming: alarm on counter 0 or counter 0 & 1, programmable
    • Counter Preset Value: programmable
  • Frequency Measurement
    • Input Frequency: 1Hz to 100KHz max
    • Gate Time: 1.0 or 0.1sec, programmable
  • Digital Output:
    • Channels: 2
    • Output Type: Sink, Open-Collector
    • Output Voltage: 30V max
    • Output Current: 30mA max
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:2.0W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
