8552

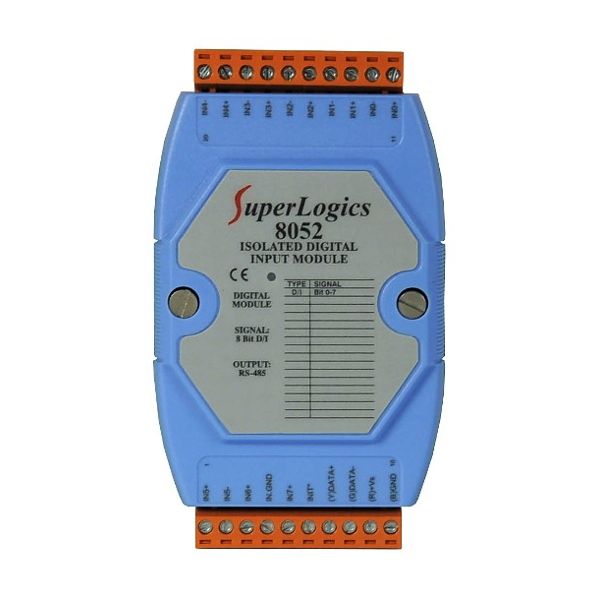

Complete 8 Isolated Digital Input System

  • 8 Digital Inputs
  • 5000 Volts Isolation

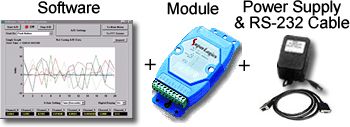

  • Includes:
    • 8520 for direct RS-232
    • RS-232 Cable
    • Power Supply
    • WINview CP Plus Ready-to-Run Software
    • Includes CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP and Vista (32-Bit) OS

Hardware Specifications:

  • Digital Input:
    • Channels: 8
    • Input Type: Sink, Source, 6 fully independent channels and 2 common ground channels
    • Off Voltage Level: +1V max
    • On Voltage Level +4V to +30V
    • Input Impedance 3K Ohms, 0.3W
    • Counters:
      • Channels: 8
      • Max Counts :16-bit (65535)
      • Max Input Frequency: 100Hz
      • Min Pulse Width : 5ms
    • Photo-Isolation: 5000Vrms
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:0.4W
  • Protocol
    • Support Modbus and DCON Protocol: Yes
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
