8041

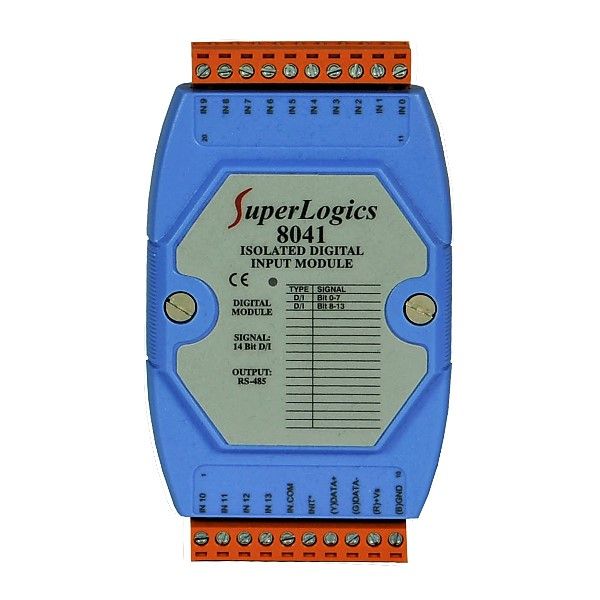

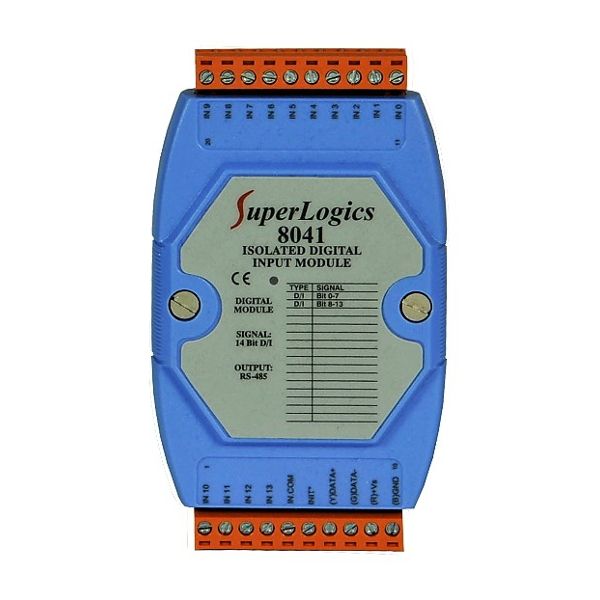

14 Channel Digital Input Module

  • 14 Digital Inputs (expandable)
  • 3.5 to 30 Volt Input for High Logic
  • 1 Volt Max for Low Logic
  • 3750 Volt Isolation
  • 4 channels may also be used as low freq counters
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Digital Input:
    • Input Channels: 14
    • Input Type: Sink or Source,Isolated channel with common power or ground
    • Off Voltage Level:+1V Max
    • On Voltage Level: +4 ~ +30V
    • Input Impedance 3K Ohms, 0.5W
    • Counters
      • Channels: 14
      • Max Counts: 16-Bit (65535)
      • Max Input Frequency: 100hz
      • Min. Pulse Width: 5ms
    • Isolation Voltage: 3750Vrms
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 0.2W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
