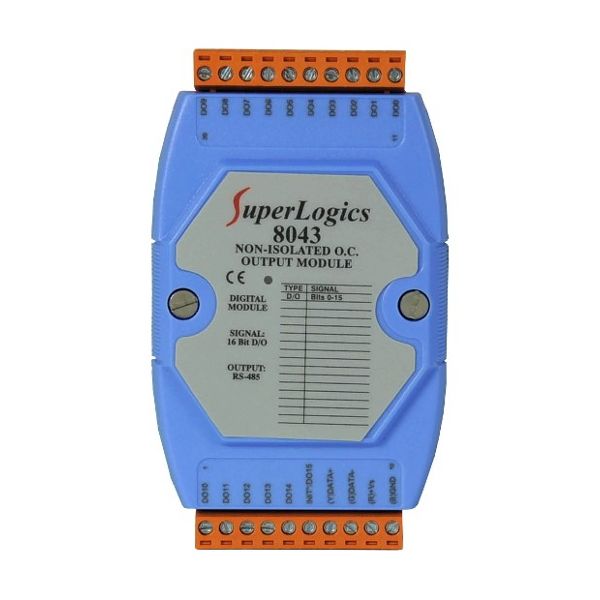

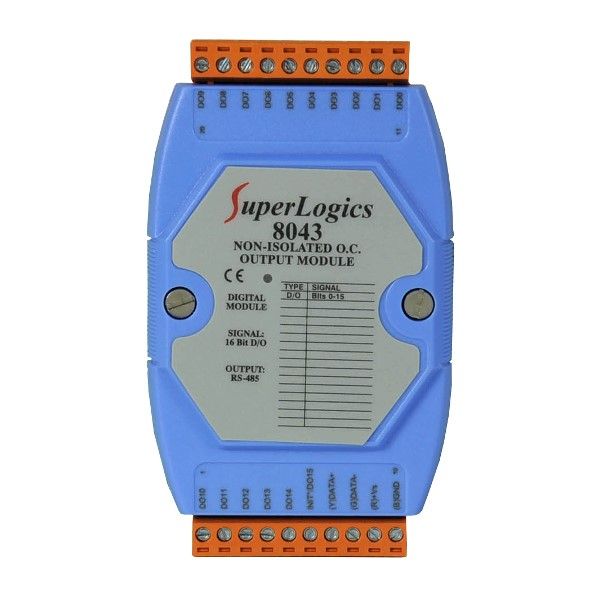

8043

16 Open Collector Outputs

  • 16 Channels Digital Output (Open Collector)
  • Open collector to 30V max.
  • Output current : 100mA per channel, total 3A max.
  • Direct drive power relay module
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems


Hardware Specifications:

  • Digital Input:
    • Channels: 16, Sink, NPN
    • Output Voltage: 30V max
    • Output Current 100mA per channel, Direct drive power relay module
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 0.4W
