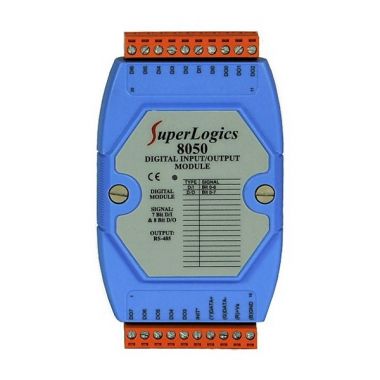

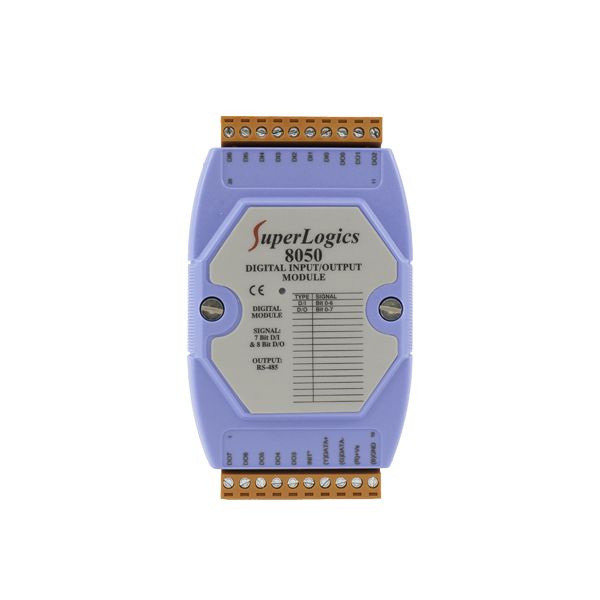

15 Channel Digital I/O Module

  • 7 Digital Inputs (expandable)
  • 3.5 to 30 Volt Input for High Logic
  • 1 Volt Max for Low Logic
  • 8 Digital Outputs (Open Collector)
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Digital Input:
    • Channels: 7
    • Input Type: Source, non-isolated channel with common ground
    • Off Voltage Level: +1V max
    • On Voltage Level: +4V ~ +30V
    • Input Impdendance: 3k9, 0.3W
    • Counters:
      • Channels: 7
      • Max Counts :16-bit (65535)
      • Max Input Frequency: 100Hz
      • Min Pulse Width : 5ms
  • Digital Output (Open Collector):
    • Channels: 8, Sink, NPN
    • Output Voltage: 30V max
    • Output Current: 30mA max
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 0.4W
