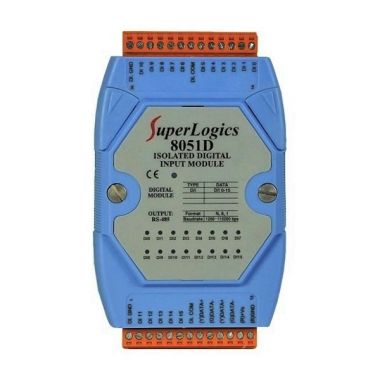

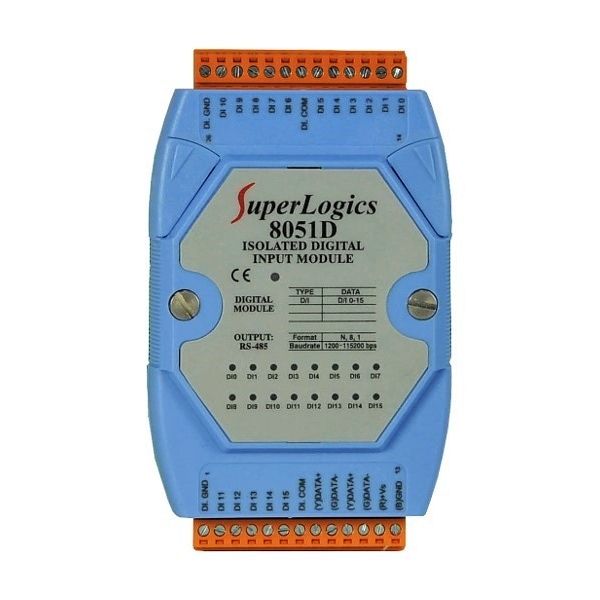

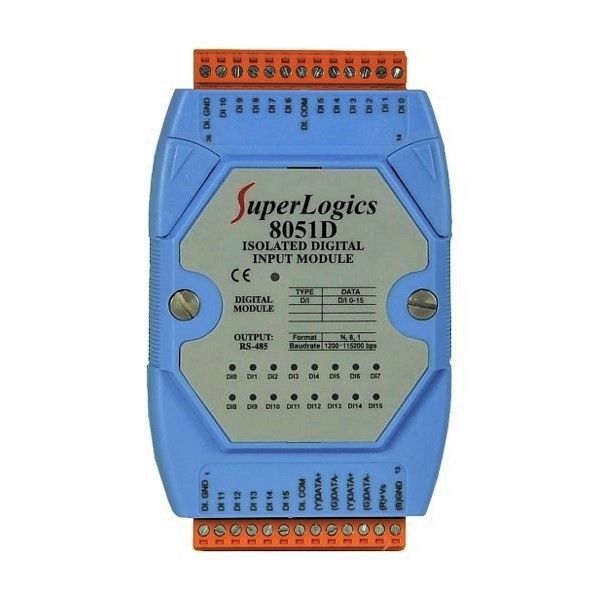

Hardware Specifications:
- Digital Input:
- Channels: 16
- Input Type:
- Dry Contact : Source
- Wet Contact: Sink or Source
- Dry Contact
- Off Voltage Level: Open
- On Voltage Level: Close to GND
- Effective Distance: 500 M Max. for Dry Contact
- Wet Contact Level
- Off Voltage Level: +4V max
- On Voltage Level +10 Vdc ~ +50 Vdc
- Input Impdendance: 10 k?, 0.5W
- Counters:
- Channels: 16
- Max Counts :16-bit (65535)
- Max Input Frequency: 100Hz
- Min Pulse Width : 5ms
- Over-Voltage Protection: 70 Vdc
- Photo-isolation: 3750 Vrms
- Interface:
- RS-485
- Format: N,8,1
- Baud Rate: 1200 ~ 115200 bps
- Connections: Terminal blocks (accepts 16-22 AWG wires)
- LED Display:
- 1 LED as Power/Communication Indicator
- 16 LEDs as digital input indicators
- Power:
- Input Voltage Range: +10 to +30V DC
- Power Consumption: 2.8W
- Dimensions:
- 72 mm x 120 mm x 35 mm (W x L x H)
