8053

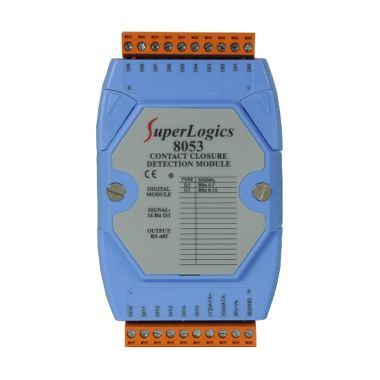

16 Channel Contact Closure Module

  • 16 Digital Inputs (expandable)
  • Contact Closure Detection
  • 3.5 to 30 Volt Input for High Logic
  • 1 Volt Max for Low Logic
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Digital Input:
    • Channels: 16
    • Input Type: Dry Contact, Source
    • Off Level: Close to GND
    • On Level: Open
    • Effective Distance: 500m max
    • Counters:
      • Channels: 16
      • Max Counts :16-bit (65535)
      • Max Input Frequency: 100Hz
      • Min Pulse Width : 5ms
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:0.7W
  • Protocol
    • Support Modbus and DCON Protocol: Yes
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
