8055D

8 Contact Closure Input/8 Digital Output Module; Input Type: Input Type Dry Contact: Source, Wet Contact: Sink or Source; Output Type: Source, Open Collector; Output Voltage 10 to 40V max; Output Current 650mA per channel, Direct drive power relay module

8 Contact Closure Input/8 Digital Output Module; Input Type: Input Type Dry Contact: Source, Wet Contact: Sink or Source; Output Type: Source, Open Collector; Output Voltage 10 to 40V max; Output Current 650mA per channel, Direct drive power relay module

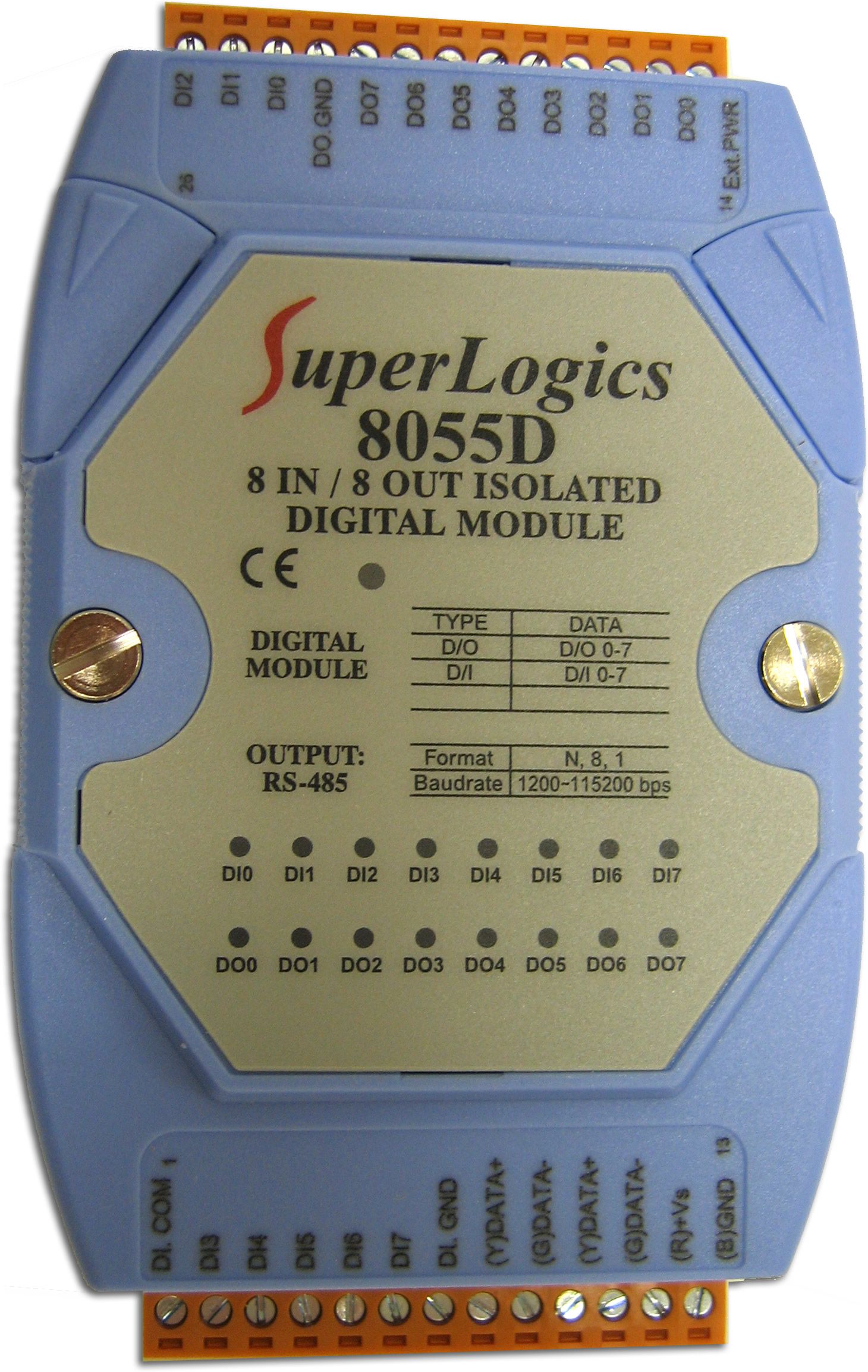

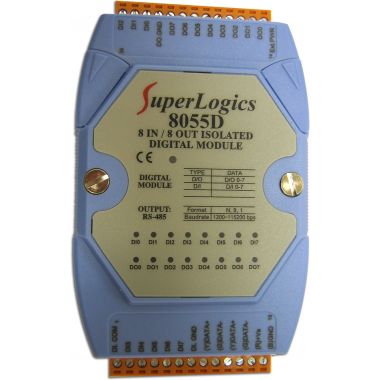

  • 8055D
  • 8 x Digital Inputs & 8 x Digital Outputs  - Expandable
  • Accepts Dry/Wet Contacts
  • 3750 Vrms Isolation
  • Over-Voltage Protection: 70 VDC
  • Digital Input Channels Can be Used as Low Frequency Counters
  • 8 LED Indicators on Front Label for Quick Check of Digital Inputs
  • 8 LED Indicators on Front Label for Quick Check of Digital Outputs
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems
Related Products
Technical Specifications

Hardware Specifications:

  • Digital Input:
    • Channels: 8
    • Input Type:
      • Dry Contact : Source
      • Wet Contact: Sink or Source
    • Dry Contact
      • Off Voltage Level: Open
      • On Voltage Level: Close to GND
    • Wet Contact Level
      • Off Voltage Level: +4V max
      • On Voltage Level +10 Vdc ~ +50 Vdc
    • Input Impdendance: 10 k?, 0.5W
    • Counters:
      • Channels: 8
      • Max Counts :16-bit (65535)
      • Max Input Frequency: 100Hz
      • Min Pulse Width : 5ms
    • Over-Voltage Protection: 70 Vdc
    • Photo-isolation: 3750 Vrms
  • Digital Output:
  • Channels: 8, Source, NMOS
  • Output Voltage: 10 ~ 40V max
  • Output Current: 650 mA per channel, Direct drive power relay module
  • Overvoltage Protection: 47 Vdc
  • overload Protection: Yes
  • Short-circuit and Overcurrent Protection: Yes, 1.4A
  • Thermal Overload trip temperature: 150°C
  • 4KV ESD Protection: Yes contact for each terminal
  • Intra-module Isolation: 3750 Vrms
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
    • 8 LEDS as digital input indicators
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:2.2W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
