8059D

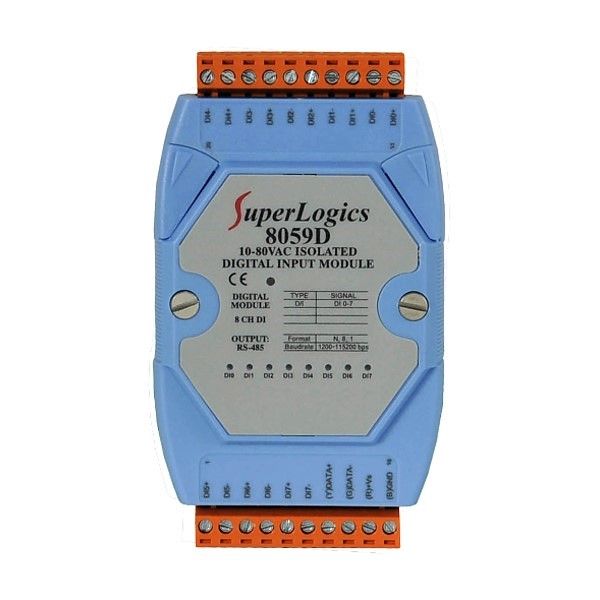

8 Isolated AC Voltage Input Module; Features 8 LED Displays..Off Voltage Level 3 VAC max. ..On Voltage Level 10~80 VAC

  • 8 x Digital Inputs - Expandable
  • Accepts AC, Differential & Isolated Inputs
  • Off Voltage Level: 3 VAC Max
  • On Voltage Level: 10~80 VAC
  • AC Frequency Range: 47~400 Hz (> 45 Hz min)
  • 5000 Vrms Isolation
  • Digital Input Channels Can be Used as Low Frequency Counters
  • 8 LED Indicators on Front Label for Quick Check of Digital Inputs
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Digital Input:
    • Channels: 8
    • Input Type: AC, Differential, Isolated
    • Off Voltage Level: 3 VAC max
    • On Voltage Level: 10~80 VAC
    • AC Frequency: 47~400Hz (> 45Hz min)
    • Input Impdendance: 10 k?, 1W
    • Counters:
      • Channels: 8
      • Max Counts :16-bit (65535)
      • Max Input Frequency: 100Hz
      • Min Pulse Width : 5ms
    • Photo-isolation: 5000 Vrms
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
    • 8 LEDS as digital input indicators
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:1.0W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
