8060

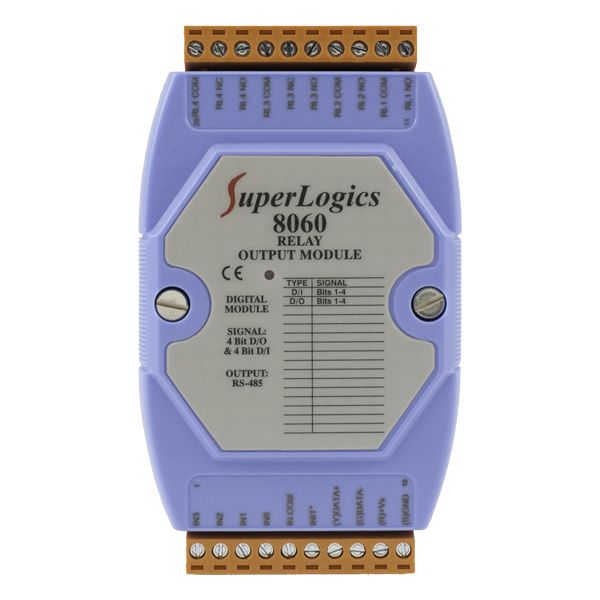

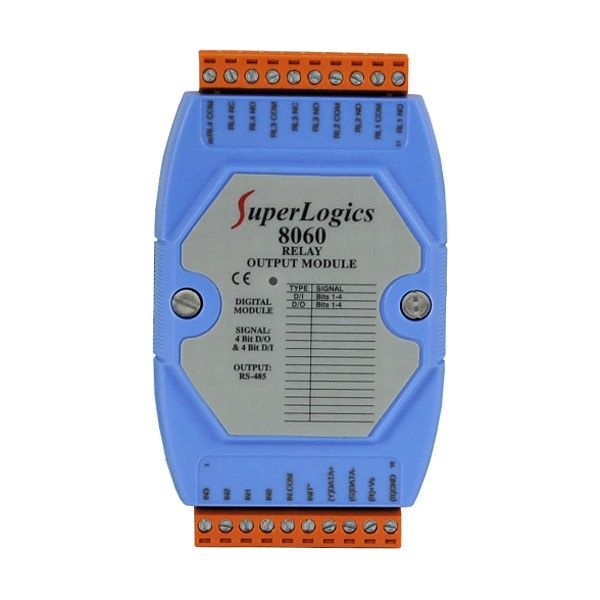

4 TTL Digital Input/4 Relay Output Module

  • 4 isolated digital inputs with common power (expandable)
  • 4 relay output channels (expandable)
  • 3750 Vrms isolation
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Digital Input:
    • Channels: 4
    • Input Type: Sink or Source
    • Off Voltage Level: +1V max
    • On Voltage Level: +4V to +30V
    • Input Impedance: 3KOhm, 0.5w
    • Counters:
      • Channels: 4
      • Max Counts :16-bit (65535)
      • Max Input Frequency: 100Hz
      • Min Pulse Width : 5ms
    • Photo-isolation: 3750 Vrms
  • Relay Output
    • Channels: 4
    • Relay Type: Form A x2, Form C x2
    • Contact Rating
      • AC: 125V @0.6A; 250V @0.3A
      • DC: 30V @2a; 110V @0.6a
    • Operating Time(typical): 3ms
    • Release Time(typical): 2ms
    • Total Switching Time: 10ms
    • Surge Strength: 500VAC (50/60Hz)
    • Insulation Resistance: 10000MW min. at 500Vdc
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:1.3W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
