8067

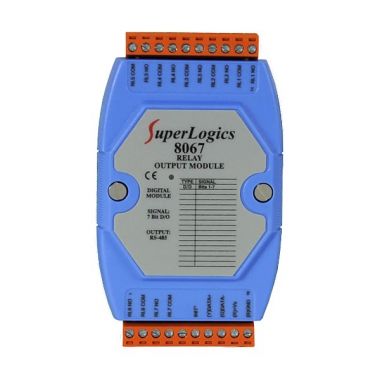

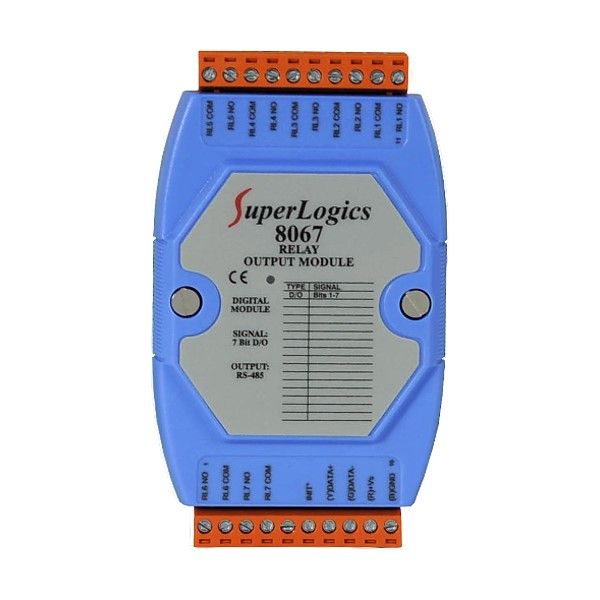

7 Relay Outputs Module

  • 7 Relay Output Channels (expandable)
  • Form “A” relay SPST N.O.
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Relay Output:
    • Channels: 7
    • Relay Type: Form A relay SPST (N.O.)
    • Contact Rating: AC [email protected], [email protected]
    • Operating Time(max): 5ms
    • Release Time(min): 2ms
    • Surge Strength: 1500VAC
    • Life Time:
      • Mechanical: 20 x 10^6 OPS
      • Electrical: 100 x 10^3 Full Load
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption:1.5W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
